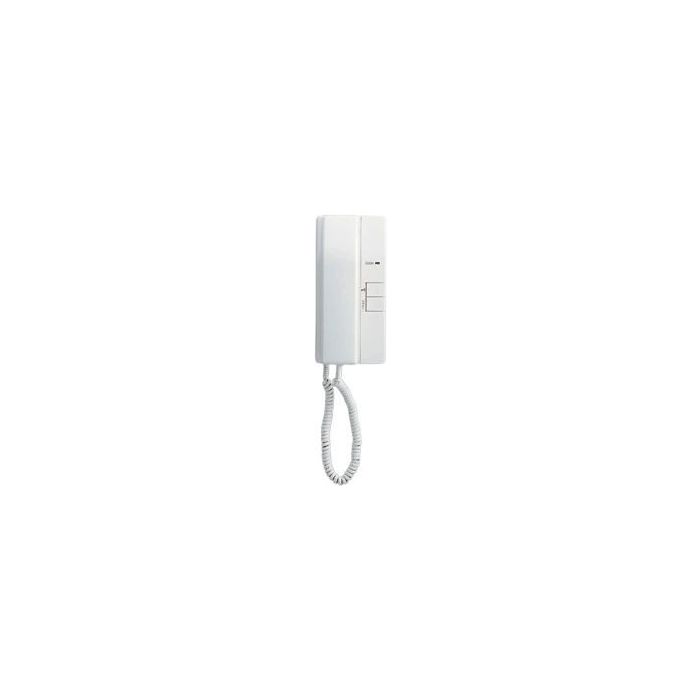

IE-1GD(U) Aiphone IE Series 1 Door 3 Room Master Handset
The IE-1GD(U) is an Aiphone IE Series chime-tone intercom room master station for systems with one door station and up to three room stations. It features wall-mount installation, handset operation, a visitor call LED, a door-release button and a room-call button.
Designed for multi-room residential audio entry applications, the master station supports door answering, room-to-room communication, door-release control, a 4-stroke electronic chime with adjustable volume and an optional call-extension speaker.
Key Features
- Supports one door station and up to three room stations.
- Room-call function enables communication between room stations.
- Door-release button provides entry control when connected to a compatible release circuit.
- 4-stroke electronic chime with adjustable volume.
- Supports an optional call-extension speaker for additional audible notification.
- Catalogue Family:
- INTERCOM
- Model:
- IE-1GD(U)
- Product Type:
- INTERCOM
- System Type:
- IE SERIES CHIME-TONE INTERCOM, 1 DOOR AND UP TO 3 ROOMS
- Power Source:
- AC 12-16 V, 200 MA OR DC 12-24 V, 200 MA
- Current Consumption:
- Maximum 200 mA
- Calling:
- 4-stroke electronic chime with slide volume switch
- Wiring:
- 2 WIRES TO DOOR STATION, 6 WIRES BETWEEN ROOM STATIONS AND 2 WIRES TO DOOR RELEASE
- Door Release Contact Capacity:
- DC/AC 24 V, 0.5 A
- Dimensions:
- 210 mm H x 100 mm W x 68 mm D
- Weight:
- Approx. 700 g
- Mounting:
- WALL MOUNT
