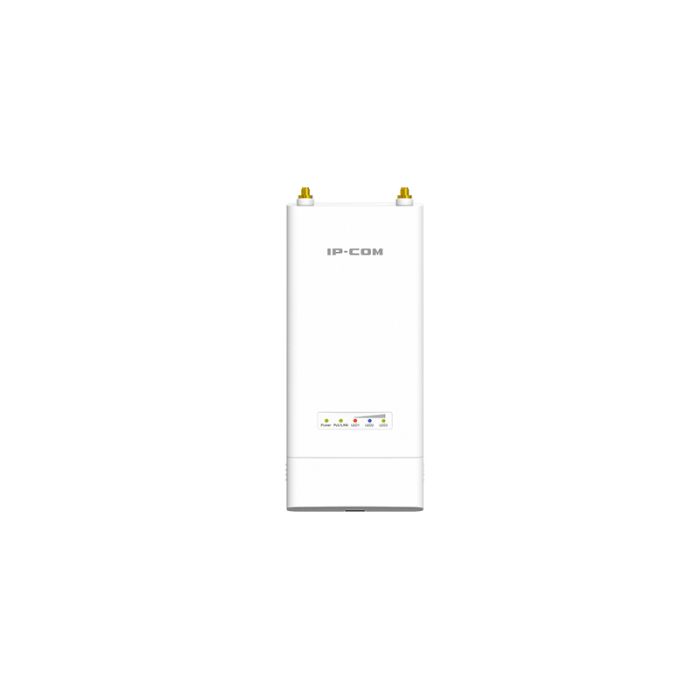

ICMBS9 BS9 5GHz 867Mbps ipMAX AC Gigabit Basestation
The ICMBS9 is the IP-COM BS9 5GHz 867Mbps ipMAX AC Gigabit Basestation. Outdoor 5 GHz wireless base station with one Gigabit Ethernet port, two RP-SMA connectors, an IP65-rated enclosure, and 6000 V lightning protection.
Suitable for Point-to-Point (PtP) backhaul and Point-to-Multipoint (PtMP) wireless links, including private ISP internet access and CCTV surveillance transmission. Features ipMAX and iLink technologies and supports compatible external antennas and CPEs.
Key Features
- Supports outdoor PtP and PtMP wireless links for surveillance and broadband access
- Gigabit Ethernet port helps preserve throughput at the wired handoff point
- ipMAX protocol supports coordinated multi-point outdoor wireless performance
- IP65 enclosure and lightning protection suit exposed installation environments
- iLink auto-bridge support can simplify setup for compatible IP-COM devices
- Catalogue Family:
- SPLITTERS & EXTENDERS
- Model:
- BS9
- Dimensions:
- 194.7 x 83 x 42.1 mm
- Deployment:
- Pole mount
- Frequency Range:
- 5GHz
- Compliant Standards:
- IEEE 802.11a/n/ac
- Private Tdma Protocol:
- ipMAX
- Maximum Wireless Rate:
- 867Mbps
- Interface:
- 1 x 10/100/1000Mbps Ethernet port
- Antenna Connection:
- 2 x RP-SMA connector
- Power Consumption:
- 7.5W
- Waterproof Level:
- IP65
- Power Method:
- 24V 0.5A Passive PoE
- Passive PoE Distance:
- Up to 60 metres
- Lightning Protection:
- 6000V
- Operating Temperature:
- -30 deg C to 60 deg C
- Certifications:
- FCC/CE/RoHS
- Frequency:
- 5GHZ
- Mounting:
- POLE MOUNTED
- Wattage:
- 7.5W
- Product Type:
- Splitters & Extenders
