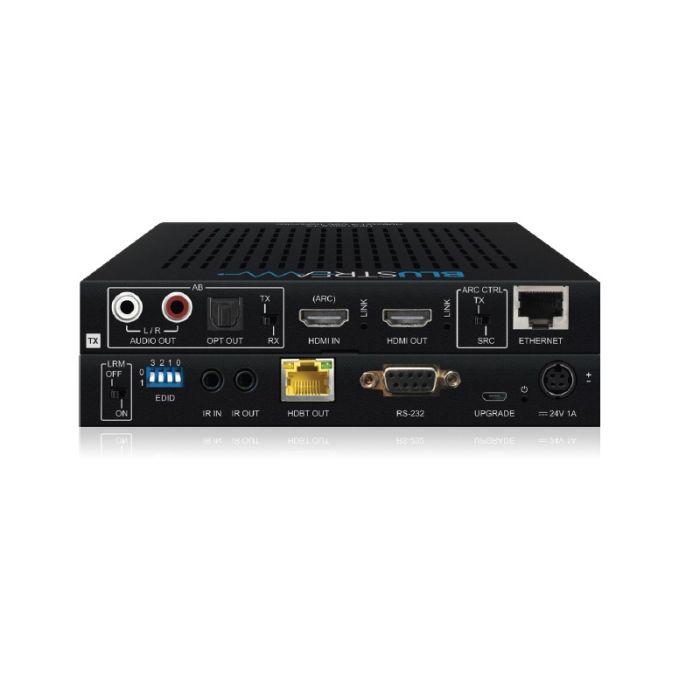

HEX150CS-KIT Long Range HDBaseT™ CSC Extender Kit
The HEX150CS-KIT is a long-range HDBaseT™ CSC extender set for HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 distribution. It supports HDMI, bi-directional IR, RS-232 and PoH over a single CAT cable, with 4K 60Hz 4:4:4 supported up to 100 m and 1080p up to 150 m.
The kit suits premium custom AV installations that need longer cable reach with source, display and control integration. ARC over HDMI or optical, Ethernet pass-through and audio return options add flexibility for rooms where video, audio and control need to share the same extension path.
Key Features
- Long-range HDBaseT™ extension helps cover larger homes and commercial AV spaces.
- CSC support enables demanding HDMI 2.0 signals across HDBaseT™ infrastructure.
- ARC and audio return options make display-side audio routing more flexible.
- Bi-directional control and Ethernet pass-through reduce the need for separate infrastructure.
- PoH support helps simplify power planning across transmitter and receiver locations.
- Catalogue Family:
- POWER SUPPLY
- Model:
- HEX150CS-KIT
- Product Type:
- Power Supply
- Video Support:
- HDMI 2.0 18Gbps, 4K 60Hz 4:4:4 and HDR via CSC
- Transmission Distance:
- 4K 60Hz 4:4:4 up to 100 m; HDMI 1080p up to 150 m
- Audio Return:
- ARC via HDMI or optical digital inputs
- Control Support:
- Bi-directional IR and RS-232 pass-through
- Ethernet:
- Bi-directional 10/100BaseT Ethernet pass-through
- Transmitter Dimensions:
- 156 x 123 x 23 mm
- Receiver Dimensions:
- 148 x 134 x 23 mm
- Power Supply:
- 24 V/1 A DC, 4-pin DIN
