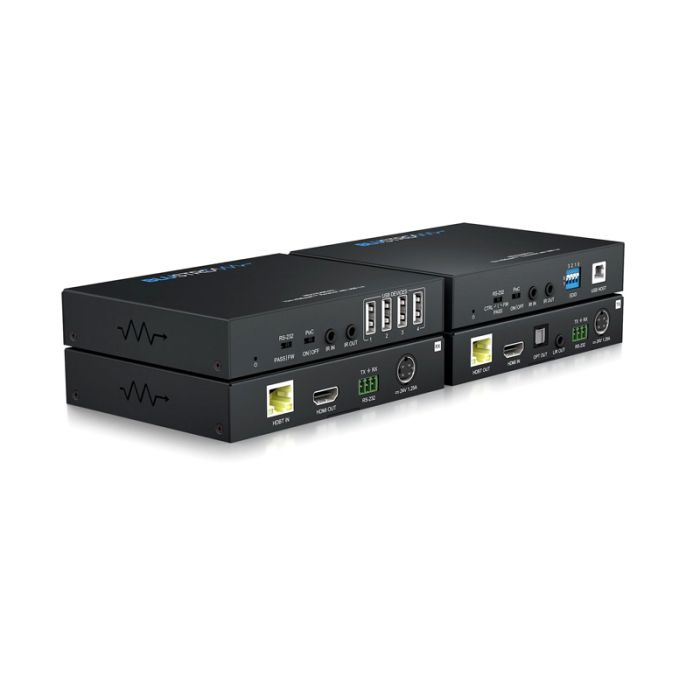

HEX70USB-KIT HDBaseT™ USB Extender Set
The HEX70USB-KIT is a 4K HDBaseT™ USB 2.0 extender set delivering HDMI to 70 m, with 4K 60Hz 4:2:0 supported to 40 m. It also extends USB 2.0, bi-directional IR, RS-232, HDMI audio breakout and bi-directional PoC.
The receiver provides four USB Type-A device ports while the transmitter provides a USB Type-B host connection, making the kit useful for KVM-style display, control or interactive installations. Audio breakout and advanced EDID management add flexibility for AV rooms that need both signal extension and local audio access.
Key Features
- Combines HDMI and USB extension for more complete room-to-rack connectivity.
- Four receiver-side USB ports support practical peripheral connection at the display end.
- Audio breakout helps route display-side or receiver-side audio to local equipment.
- Bi-directional control paths support integrated device and system management.
- PoC and EDID support help simplify commissioning in structured AV installations.
- Catalogue Family:
- POWER SUPPLY
- Model:
- HEX70USB-KIT
- Product Type:
- Power Supply
- Video Distance:
- HDMI 1080p up to 70 m; 4K 60Hz 4:2:0 up to 40 m
- USB Support:
- 4 x USB Type-A on receiver and 1 x USB Type-B on transmitter
- USB Bandwidth:
- Up to 280 Mbps; 5 V 500 mA output per USB Type-A port
- Audio Outputs:
- Optical S/PDIF and analogue L/R audio
- Control Support:
- Bi-directional IR and RS-232 pass-through
- Dimensions:
- 135 x 105 x 25 mm
- Power Supply:
- 24 V/1.25 A DC, 4-pin DIN
- Operating Temperature:
- 0°C to 40°C
