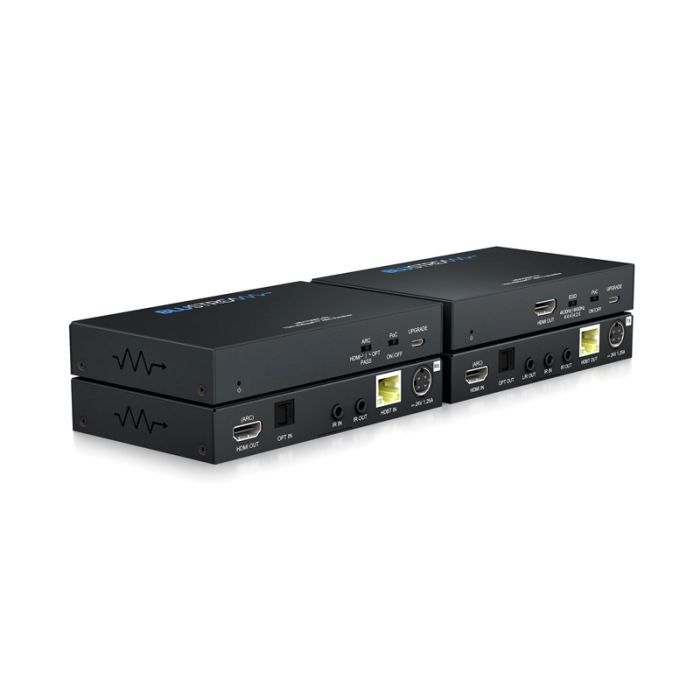

HEX70ARC-KIT HDBaseT™ ARC Extender Set
The HEX70ARC-KIT is a 4K HDBaseT™ ARC extender set that delivers HDMI, ARC, optical audio return, bi-directional IR and bi-directional PoC over a single CAT cable. It supports 1080p extension up to 70 m and 4K UHD up to 40 m.
The transmitter HDMI loop-out supports a local display or cascade path, while ARC via HDMI or optical input helps return display audio to the system. This makes the kit useful in custom installations where video, audio return and control need to be managed across the same room link.
Key Features
- Combines HDMI extension and audio return in one room-link solution.
- Single-cable HDBaseT™ delivery helps reduce infrastructure between source and display.
- HDMI loop-out adds flexibility for local display or cascade requirements.
- Bi-directional IR and PoC support cleaner control and power planning.
- Smart EDID and HDCP 2.2 support help stabilise modern AV source/display connections.
- Catalogue Family:
- POWER SUPPLY
- Model:
- HEX70ARC-KIT
- Product Type:
- Power Supply
- Video Support:
- 4K UHD up to 40 m; HDMI 1080p up to 70 m
- Audio Return:
- ARC from connected display via HDMI ARC or optical digital input
- Video Input:
- 1 x HDMI Type A
- Video Outputs:
- HDBaseT™ RJ45 and HDMI loop-out on transmitter; HDMI on receiver
- Control Support:
- Bi-directional IR pass-through
- Dimensions:
- 135 x 84 x 21 mm
- Power Supply:
- 24 V/1.25 A DC, 4-pin DIN
- Operating Temperature:
- -5°C to +55°C
