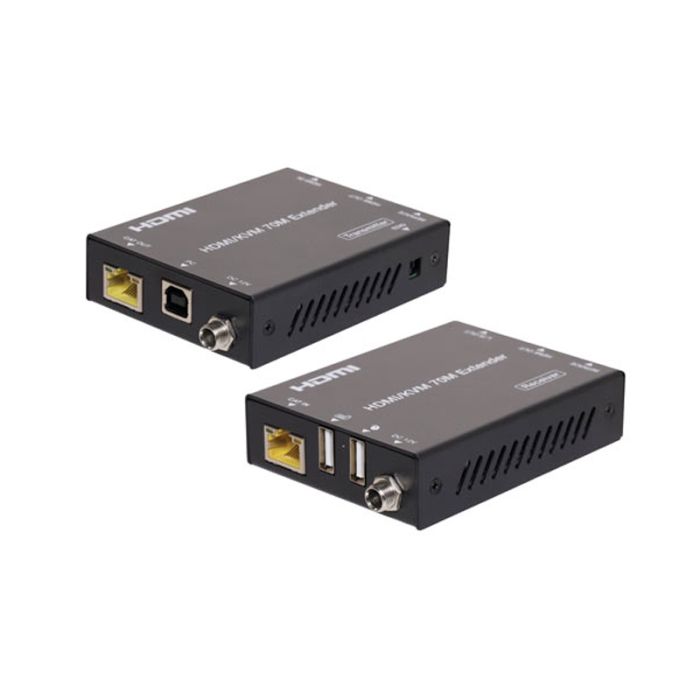

A3245 18Gbps HDMI Extender With USB KVM - 70 m
The A3245 is an 18 Gbps HDMI extender with USB KVM, designed to carry HDMI up to 70 m over a single Cat6 or Cat6a cable. It supports 4K2K at 60 Hz, HDCP 2.2 compliance, KVM pass-through, EDID copy pass-through and bi-directional POC power.
It is suited to meeting rooms, teaching spaces, large displays and AV installations where a source computer or media device needs to be controlled from the display end. USB keyboard and mouse support, audio de-embedding and compact metal transmitter/receiver housings support flexible installation.
Key Features
- 70 m Cat6/6a extension supports longer HDMI runs without moving the source device.
- USB KVM pass-through allows keyboard and mouse control from the receiver end.
- 18 Gbps bandwidth supports the 4K2K at 60 Hz video capability.
- Bi-directional POC reduces the need to power both transmitter and receiver separately.
- EDID copy pass-through helps maintain display compatibility in fixed AV systems.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- HDMI Compliance:
- HDMI 2.0b
- Hdcp Compliance:
- HDCP 2.2
- Video Bandwidth:
- 18 Gbps
- Video Resolution:
- Up to 4K2K at 60 Hz RGB/YCbCr 4:4:4
- Transmission Distance:
- 4K2K at 60 Hz 4:4:4 up to 70 m; 1080p up to 70 m over Cat6
- HDR Support:
- HDR, HDR10, HDR10+, Dolby Vision and HLG
- USB KVM:
- USB 1.1 compliant keyboard and mouse control
- Power Supply:
- DC 12 V / 1 A with bi-directional POC
- Housing:
- Metal enclosure
- Colour:
- Black
- Dimensions:
- Transmitter/receiver 90 W x 68 D x 22 H mm
- Weight:
- Transmitter 170 g; receiver 169 g
- Power Consumption:
- 4.2 W max
