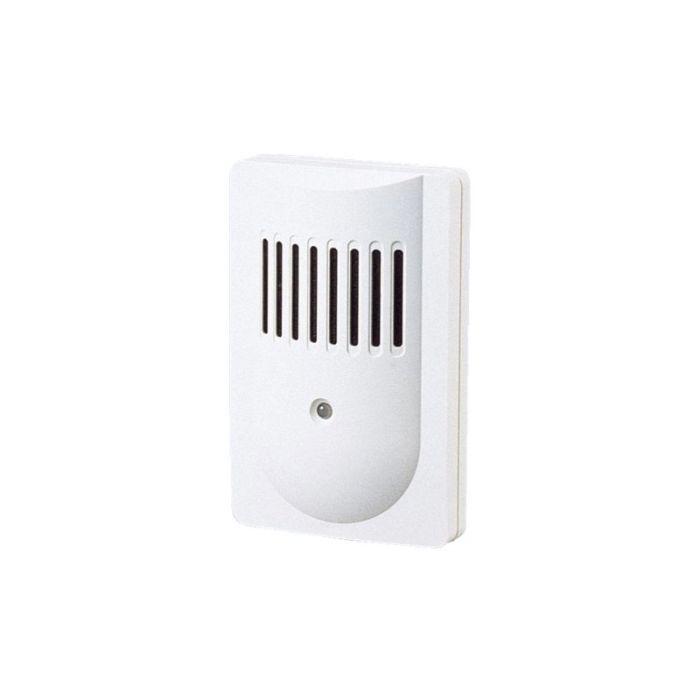

GS-1100E Glass Break Sensor - Indoor Wall Mount
The GS-1100E is a TAKEX ultrasonic glass break sensor designed to detect the sound of breaking glass from plate glass windows, doors and showcases. It uses an ultrasonic microphone and is intended for indoor wall mounting, with one unit capable of protecting one or more plate-glass areas.
It features alarm and environmental status LEDs for operation checking, alarm memory for identifying a triggered device after activation, and coverage of up to 8 m horizontally and 7 m vertically for indoor glass-break detection.
Key Features
- Ultrasonic detection of breaking plate glass.
- Coverage of up to 8 m horizontally and 7 m vertically for indoor wall-mounted installations.
- Alarm and environmental status LEDs for operation checking.
- Alarm memory indication for identifying a triggered sensor.
- Compact white ABS resin housing for wall mounting.
- Catalogue Family:
- ALARM SENSOR
- Model:
- GS-1100E
- Product Type:
- Alarm Sensor
- Detection System:
- Ultrasonic microphone
- Coverage:
- Horizontal 8 m max.; vertical 7 m max.
- Angle Adjustment:
- Horizontally +/-40 deg
- Power Voltage:
- 9 V to 20 VDC, non-polarity
- Current Consumption:
- 30 mA or less
- Alarm Output:
- Dry contact relay N.C.; reset approx. 2 sec.; 30 VAC/DC, 0.1 A or less
- Tamper Signal:
- Dry contact N.C.
- Ambient Temperature:
- -10 deg C to +50 deg C
- Mounting Position:
- Indoor wall
- Weight:
- 120 g
- Appearance:
- ABS resin, white
