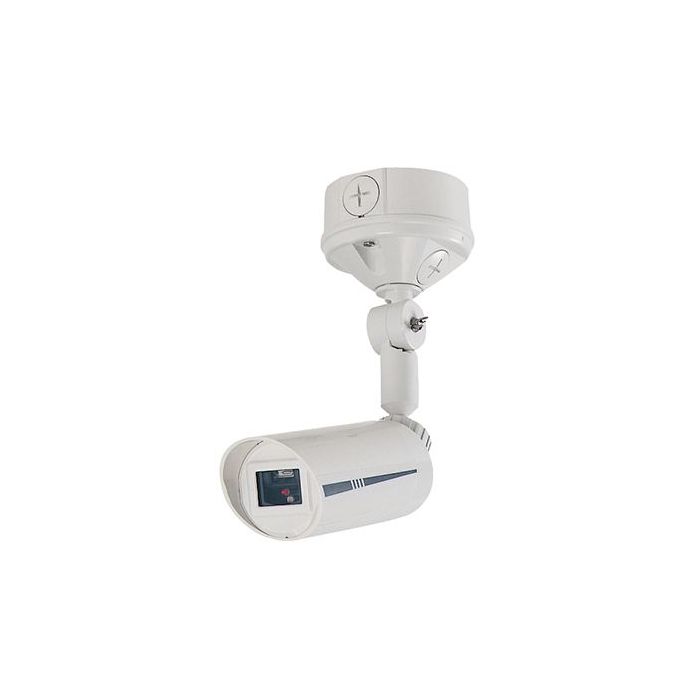

FS-5000E UV Flame Sensor - 10 m Outdoor
The FS-5000E is a TAKEX ultraviolet flame sensor designed to detect ultraviolet rays contained in flames and activate an external output. Its weatherproof housing supports indoor or outdoor use for areas where flame detection is required before a small flame grows into a larger fire risk.
The sensor provides selectable sensitivity, detection timer settings, output timing and day/night operation control, giving installers scope to tune operation for the location. Area masking and a white adjustable body help position the 10 m flame-detection zone cleanly after installation.
Key Features
- Detects ultraviolet flame energy in the 185 to 260 nm wavelength range.
- Supports outdoor flame monitoring with a weatherproof white housing.
- Lets installers balance response and false-alarm control with sensitivity and timer selections.
- Allows practical area targeting through masking and adjustable mounting.
- Provides alarm memory and selectable output timing for easier site management.
- Catalogue Family:
- ALARM SENSOR
- Model:
- FS-5000E
- Product Type:
- Alarm Sensor
- Detection System:
- Ultraviolet rays detection, 185 to 260 nm
- Detection Distance:
- 33 ft (10 m) for approx. 7 cm lighter flame
- Detection Area:
- 100 ft (30 m) for n-heptane flame on 15 cm x 15 cm fire plate
- Detection Angle:
- Vertical approx. 75 degrees; horizontal approx. 100 degrees
- Sensitivity:
- High 100 percent / low 50 percent selectable
- Detection Timer:
- 1 sec., 6 sec., 15 sec., 30 sec. selectable
- Power Supply:
- 10 V to 30 V DC, non-polarity
- Power Consumption:
- 35 mA or less
- Alarm Output:
- Dry contact relay form C, 30 V AC/DC 0.5 A or less
- Ambient Temperature:
- -20 degrees C to +50 degrees C
- Installation:
- Indoor/outdoor
- Weight:
- Approx. 550 g
- Appearance:
- Sensor part: white PC resin; adjustment/mounting part: white AES resin
