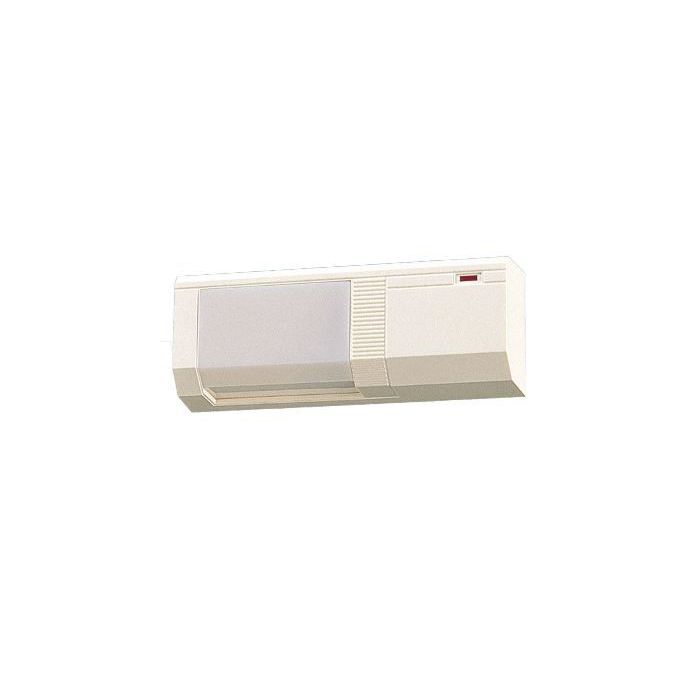

PS-520E(W) Passive Infrared Request to Exit Sensor - White
The PS-520E(W) is a TAKEX passive infrared request-to-exit sensor for doorway threshold coverage. The white variant is designed for indoor wall, ceiling, frame, overhead or under-frame mounting, with single- or double-door detection selection.
This REX sensor suits access control applications such as door strike release, alarm shunting and automatic door operation. Adjustable relay hold time, sensitivity, detection area and relay operation help installers tailor the device to the door type and required release behaviour.
Key Features
- Supports request-to-exit operation at door thresholds using passive infrared sensing.
- Adapts to single or double doors with selectable detection pattern settings.
- Allows relay hold time adjustment from approx. 0.25 sec. to 60 sec.
- Provides two dry-contact relay outputs for access-control integration.
- Offers indoor mounting flexibility for wall, ceiling, frame or overhead positions.
- Catalogue Family:
- ALARM SENSOR
- Model:
- PS-520E(W)
- Product Type:
- Alarm Sensor
- Detection System:
- Passive infrared
- Mounting Height:
- 13 ft (4 m) max.
- Detection Area:
- Single door or double door selectable
- Adjustment Range:
- Wall mount vertical 35 degrees in 8 steps; overhead mount vertical 20 degrees in 5 steps
- Power Supply:
- 12 V to 24 V DC non-polarity or 12 V to 24 V AC 50/60 Hz
- Power Consumption:
- 40 mA or less DC; 70 mA or less AC
- Output:
- Dry contact relay 2C; one-shot; hold time approx. 0.25 sec. to 60 sec.
- Contact Capacity:
- 30 V DC 1 A or less; 125 V AC 0.6 A or less
- Ambient Temperature:
- -10 degrees C to +50 degrees C without condensation
- Mounting Position:
- Wall, ceiling, on or under frame, indoor
- Weight:
- 170 g
- Appearance:
- White ABS resin cover; white PE resin window
