Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

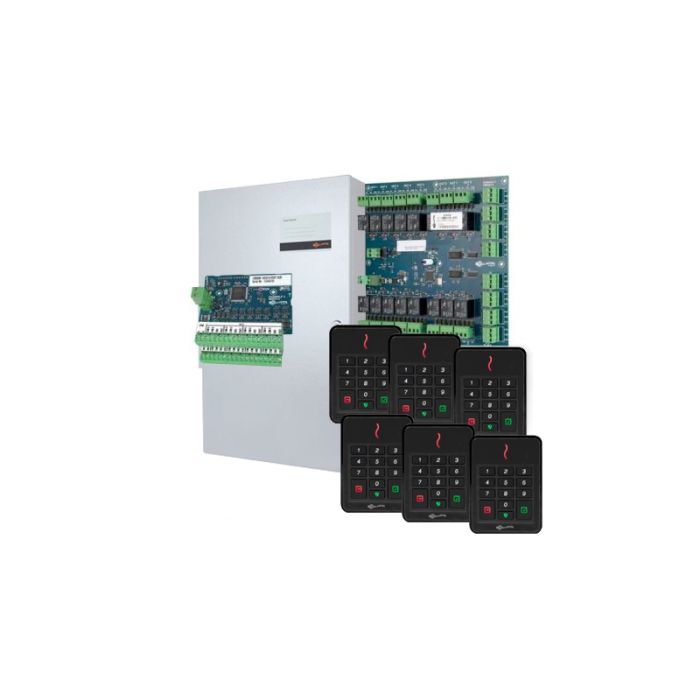

C500328 Gallagher SMB 6 Door Expansion Kit - 6 x T30 Black Keypad Readers
The Gallagher C500328 SMB 6 Door Expansion Kit adds six black T30 keypad readers to an existing Gallagher SMB access control system. The readers support keypad, card and compatible mobile credential operation, providing a coordinated upgrade for six additional entry points.
This configuration suits businesses expanding beyond the SMB system's default four-door capacity while retaining access control, alarm management and user administration within the Gallagher SMB mobile app. The Controller 6000 platform supports up to 10 controlled doors and uses secure communications with its cloud services and connected field devices.
Key Features
- Extends an existing four-door SMB system to its 10-door capacity
- Supports flexible access using compatible mobile credentials, MIFARE cards and PINs
- Combines door access with dedicated alarm arming and zone-status functions
- IP68 environmental protection and an IK09 impact rating support demanding reader locations
- Uses secure upgradeable HBUS communications for Gallagher controller integration
- Catalogue Family:
- READERS
- Product Type:
- 6 DOOR EXPANSION KIT
- Compatible System:
- Gallagher SMB solution
- Default Smb Capacity:
- 4 doors, 16 inputs, 4 outputs
- Expanded Smb Capacity:
- 10 doors, 128 inputs, 64 outputs
- Reader Model:
- T30 Multi Tech Keypad Reader
- Reader Voltage:
- 13.6 Vdc
- Reader Dimensions:
- 118.0 x 86.0 x 26.7 mm
- Reader Protection:
- IP68, IK09
- Series:
- SMB
- Connection:
- HBUS
- Input:
- 16x INPUTS
- Output:
- 16x OUTPUTS
- Colour:
- BLACK
- IP Rating:
- IP68
