Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.
C500314 Gallagher SMB Base Kit - T30 Black Reader

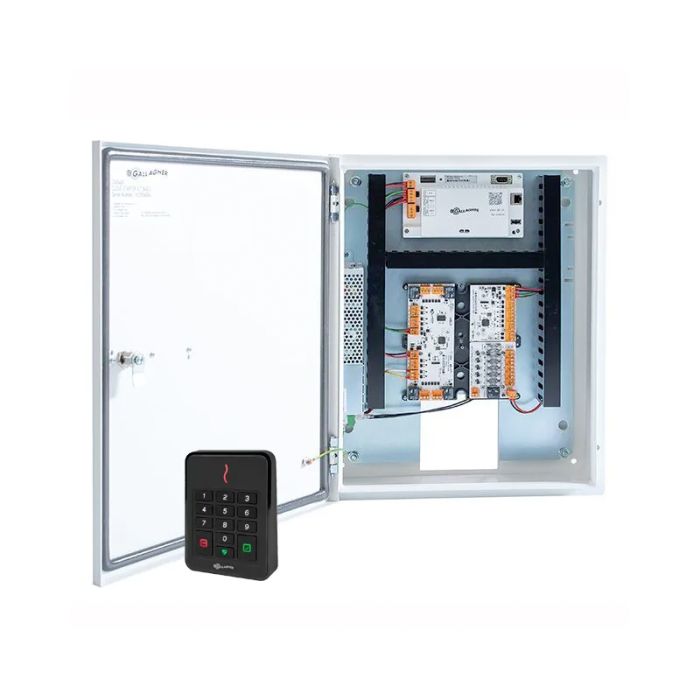

The Gallagher C500314 SMB Base Kit combines the core hardware required to commission a Gallagher SMB security system with a black T30 reader. Its base hardware includes an SMB Cabinet, SMB Controller 6000, HBUS 8In Board, HBUS 8In 4Out Board, Fuse and Fire Relay Board and 3.5 A power supply.
Designed for access control and intruder detection in small and medium business environments, the system provides a default capacity of four doors, 16 inputs and four outputs. Its scalable Gallagher SMB architecture can be expanded to support up to 10 controlled doors, 128 inputs and 64 outputs.
Key Features
- Pre-assembled cabinet hardware supports efficient system commissioning
- Centralises alarm access and user management within the Gallagher SMB mobile app
- Supports smartphone key tag card and user-code access through the T30 reader
- Uses authenticated encrypted cloud communication with automatic controller updates
- Provides secure HBUS input and output options for integrating third-party devices
60 MONTHS
- Catalogue Family:
- READERS
- Kit Configuration:
- SMB Base Kit T30 Black
- Reader Configuration:
- 1 x T30 Keypad Reader Black
- Core Kit Platform:
- SMB Controller 6000, HBUS 8In Board, HBUS 8In 4Out Board, SMB Fire Relay and Fuse Board, 3.5 A power supply and I/O mounting plate
- Default System Capacity:
- 4 access controlled doors, 16 inputs and 4 outputs
- Maximum System Capacity:
- 10 doors, 128 inputs and 64 outputs
- Hbus Device Capacity:
- 16 HBUS I/O boards and 10 readers
- Cabinet Dimensions:
- 500 x 480 x 150 mm
- Cabinet Protection Rating:
- IP44
- Power Supply:
- 3.5 A
- Product Type:
- DOOR KIT
- Series:
- SMB
- Connection:
- ETHERNET
