Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.
C500327 Gallagher SMB 6 Door Expansion Kit

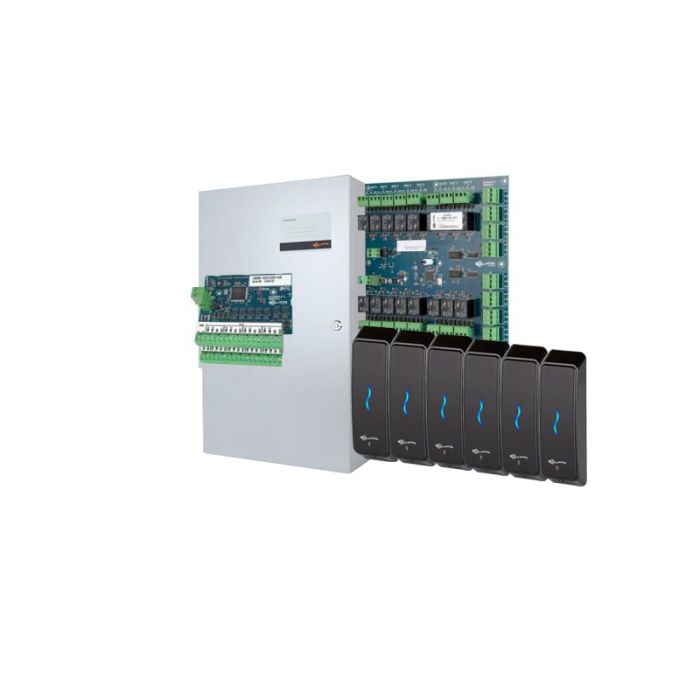

The Gallagher C500327 is a six-door expansion kit containing six black T15 Multi Tech Readers, one HBUS 8-Port Hub and one SMB HBUS 16 Input 16 Output I/O Module. The hardware is housed in a dual enclosure with a power supply.
The kit also includes a mounting plate kit, tamper hardware and wiring loom. Its T15 readers support MIFARE smart-card technologies, 125 kHz proximity credentials and Gallagher Mobile Connect through Bluetooth wireless technology.
Key Features
- Provides the hardware required to expand a Gallagher SMB system by six doors
- Six T15 readers accommodate multiple physical and mobile credential technologies
- HBUS hub and I/O module extend device connectivity and input-output capacity
- Dual enclosure consolidates the expansion hardware and power supply
- T15 reader authentication and encrypted communications protect reader data
60 MONTHS
- Wiring:
- HARDWIRED
- Product Type:
- ACCESS CONTROL EXPANSION KIT
- Series:
- SMB
- Max Devices:
- 6x DOORS
- Inputs:
- 16x INPUTS
- Outputs:
- 16x OUTPUTS
- Connection Type:
- RS-485
- Enclosure:
- DUAL ENCLOSURE
