Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

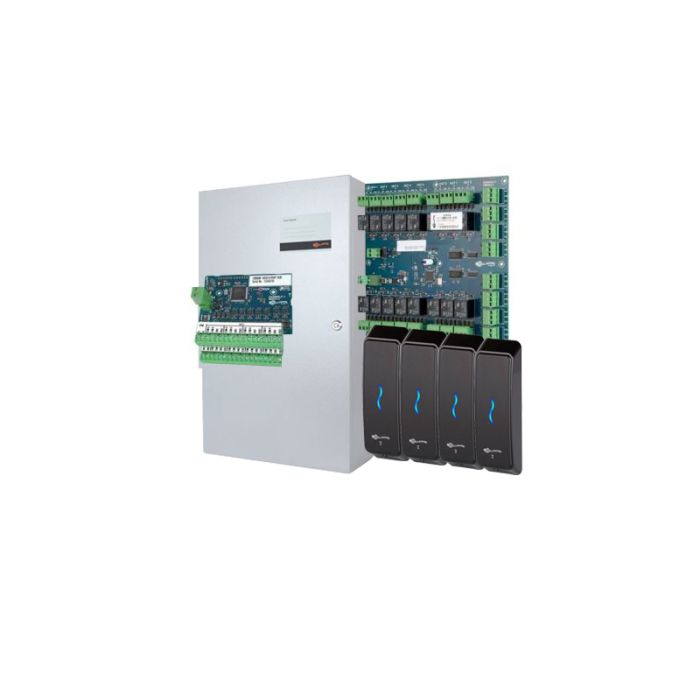

C500325 Gallagher SMB 6 Door Expansion Kit - T15 Black Readers
The Gallagher C500325 SMB 6 Door Expansion Kit is designed to extend an existing Gallagher SMB access control system across six additional door positions. Configured for black T15 readers, it provides a coordinated expansion path for sites requiring broader multi-door access coverage.
Within an SMB Controller 6000 deployment, the additional doors form part of the same cloud-connected access control and site management environment. The controller platform supports up to 10 doors, high-speed RS-485 communication with field devices and remote configuration through the Installer Config application.
Key Features
- Adds six controlled entry points for broader site coverage
- Provides a consistent black reader presentation across expanded doors
- Supports staged growth within the Controller 6000 platform's 10-door capacity
- Keeps additional doors within the same cloud-managed access control environment
- Enables central remote configuration through the Gallagher Installer Config application
60 MONTHS
- Catalogue Family:
- READERS
- Product Type:
- 6 DOOR EXPANSION KIT
- Compatible System:
- Gallagher SMB Controller 6000 environment
- Reader Model:
- T15 Multi Tech Reader BVC300480
- Reader Technologies:
- MIFARE DESFire EV1/EV2, MIFARE Plus, MIFARE Classic, 125 kHz proximity and Bluetooth
- Reader Voltage:
- 9-16 Vdc
- Reader Dimensions:
- 139 x 44 x 23 mm
- Reader Protection:
- IP68, IK07
- Controller Access Capacity:
- Up to 10 doors in an expanded SMB system
- Series:
- SMB
- Input:
- 16x INPUTS
- Output:
- 16x OUTPUTS
