C500321 SMB 4 Door Kit

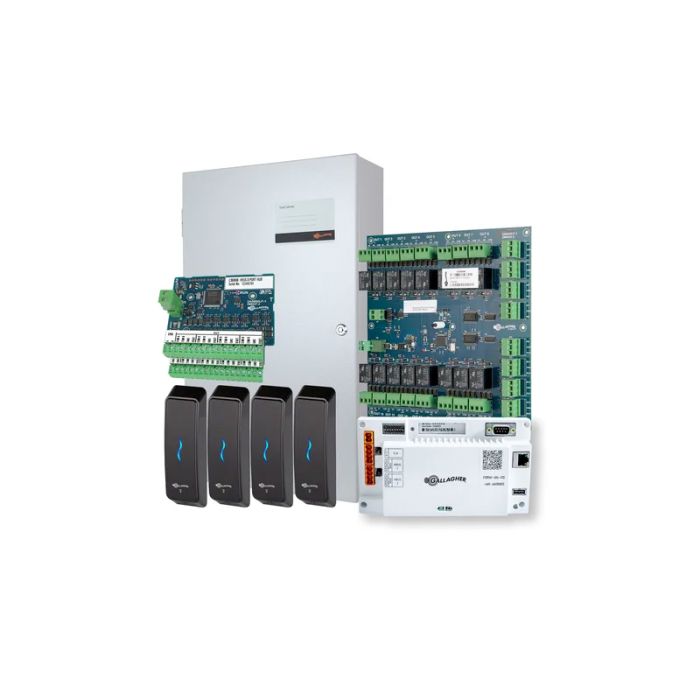

The C500321 is a Gallagher SMB 4 Door Kit for the Gallagher SMB cloud-based security platform. The kit includes an SMB Dual Cabinet, SMB Controller 6000, SMB HBUS 16In 16Out Board, SMB HBUS 8 Port Hub, 8.0 A power supply, Controller 6000 I/O Mounting Plate and 4 T15 Multi Tech Readers Black.
The kit supports 4 access-controlled doors with Gallagher SMB access control and intruder alarm functionality.
Key Features
- Groups the controller, cabinet, I/O and reader hardware into one SMB kit configuration
- Supports Gallagher SMB cloud-based alarm, access control and user management workflows
- Uses HBUS RS485 connectivity for reader and field I/O communication
- Documents a clear default door capacity with expansion headroom in the SMB platform
- Provides a kit-level configuration that helps installers plan cabinet, power and reader requirements together
- Catalogue Family:
- READERS
- Model:
- C500321
- Kit Type:
- SMB 4 Door Kit
- Reader Configuration:
- 4 x T15 Multi Tech Reader Black
- Kit Contents:
- SMB Dual Cabinet, SMB Controller 6000, SMB HBUS 16In 16Out Board, SMB HBUS 8 Port Hub, 8.0 A power supply, Controller 6000 I/O Mounting Plate and 4 x T15 Multi Tech Reader Black
- Default Capacity:
- 4 access controlled doors, 16 inputs and 16 outputs
- Maximum Capacity:
- 10 access controlled doors; 256 inputs; 64 or 256 outputs where stated by variant
- Hbus Device Capacity:
- 16 HBUS I/O boards and 10 readers
- Cabinet Dimensions:
- 620 x 372 x 150 mm
- Cabinet Protection Rating:
- IP44
- Controller Voltage:
- 9-16 Vdc
- Controller Dimensions:
- 100 x 180 x 42 mm
- Product Type:
- Readers
