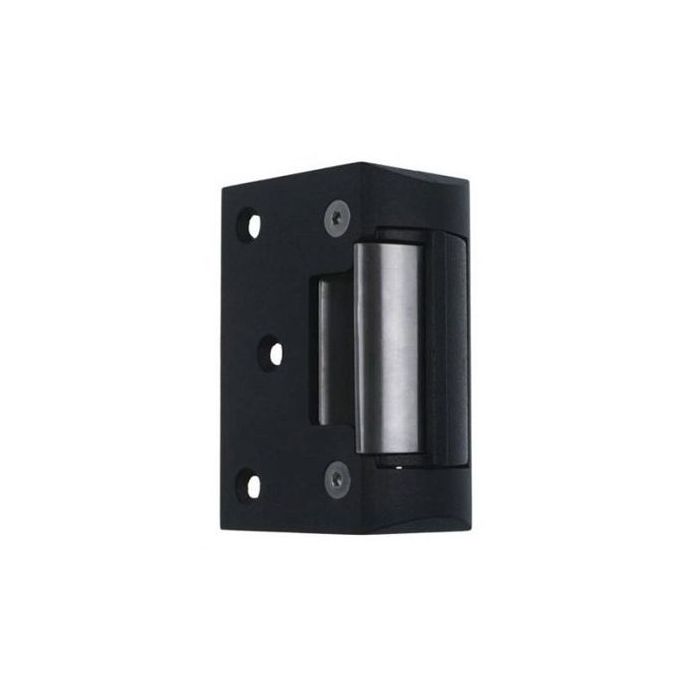

FES15 FSH Non-Monitored Rim-Mounted Electric Strike - 12/24VDC IP56
The FES15 is the non-monitored model in the FSH FES15 Series rim-mounted surface electric strike range. Weather-resistant electric strike for pedestrian gate, residential, and light commercial rim latch applications with 12 VDC or 24 VDC operation and field-interchangeable Power to Lock or Power to Release functionality.
Suitable for surface-mounted rim lock installations where door-status monitoring is not required. Features an IP56-rated enclosure, a 2-hour fire rating, and high holding strength.
Key Features
- Surface-mounted design suits rim latch control on gates and light commercial doors.
- Field-changeable locking function helps adapt the strike on site.
- Dual-voltage operation supports common access-control power supplies.
- Weather-resistant IP56 rating supports exposed non-monitored applications.
- High holding-strength rating supports dependable rim strike performance.
- Catalogue Family:
- LOCKING
- Model:
- FES15
- Function:
- Surface mount electric strike for rim latch control
- Locking Mode:
- Power to Lock or Power to Release field interchangeable
- Holding Strength:
- Over 1252 kg
- Voltage/Current:
- 12VDC 200 mA or 24VDC 100 mA
- Approvals:
- 2 hour fire rating
- Monitoring:
- Non monitored
- IP Rating:
- Weather resistant IP56
- Product Type:
- Locking
