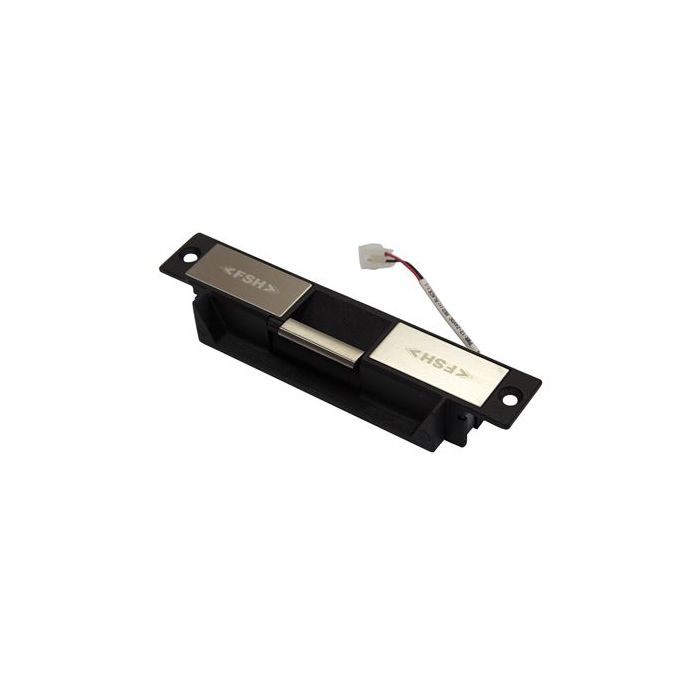

FES20 FSH Non-Monitored High-Security Electric Strike - Australian Footprint
The FES20 is the non-monitored model in the FSH FES20 Series high-security electric strike range for the Australian footprint. Stainless steel electric strike with 12-36 VDC operation and field-selectable Power to Lock or Power to Open functionality without loose screws or pins.
Suitable for internal high-security access control doors. Features a 10 mm strike lip, up to 1200 kg holding strength, testing to 2 million operating cycles, and up to a 4-hour fire rating in accordance with AS1905.1:2015.
Key Features
- Non-monitored format suits straightforward controlled-door installations.
- Field-selectable lock mode helps adapt the strike during installation.
- Multi-voltage input supports a wider range of access-control power designs.
- Pre-drilled extension-lip support helps handle frame-depth variation.
- Stainless steel construction supports robust door hardware applications.
- Catalogue Family:
- LOCKING
- Model:
- FES20
- Product Type:
- Locking
- Monitoring:
- Non monitored
- Locking Mode:
- Power to Lock or Power to Open field selectable
- Holding Strength:
- Up to 1200 kg
- Cycle Testing:
- Tested to 2 million cycles
- Voltage/Current:
- 12-36VDC 220 mA at 12VDC 120 mA at 24VDC 80 mA at 36VDC
- Fire Rating:
- Up to 4-hour fire rated in accordance with AS1905.1:2015
