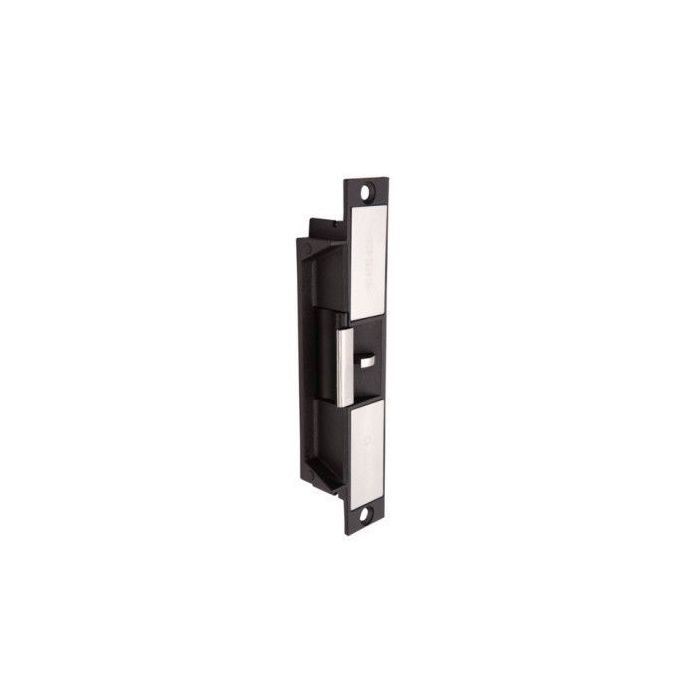

FES20M FSH Monitored High-Security Electric Strike - Australian Footprint
The FES20M is the monitored model in the FSH FES20 Series high-security electric strike range for the Australian footprint. Stainless steel monitored electric strike with 12-36 VDC operation and field-selectable Power to Lock or Power to Open functionality.
Suitable for access control applications requiring lock, door, and tamper monitoring. Features LSS, DSS, and ATS monitoring, up to 1200 kg holding strength, testing to 2 million operating cycles, and SCEC approval.
Key Features
- Integrated monitoring gives the access-control system richer door feedback.
- Field-selectable mode change supports both fail safe and fail secure needs.
- Multi-voltage operation helps suit varied controller and power supply designs.
- Australian-footprint format supports common local strike installations.
- High tested cycle rating supports repeated-use controlled entrances.
- Catalogue Family:
- LOCKING
- Model:
- FES20M
- Product Type:
- Locking
- Monitoring:
- LSS lock status DSS door status and ATS anti-tamper monitoring
- Locking Mode:
- Power to Lock or Power to Open field selectable
- Holding Strength:
- Up to 1200 kg
- Cycle Testing:
- Tested to 2 million cycles
- Voltage/Current:
- 12-36VDC 220 mA at 12VDC 120 mA at 24VDC 80 mA at 36VDC
- Approvals:
- Up to 4-hour fire rated in accordance with AS1905.1:2015 and SCEC approved monitored version
