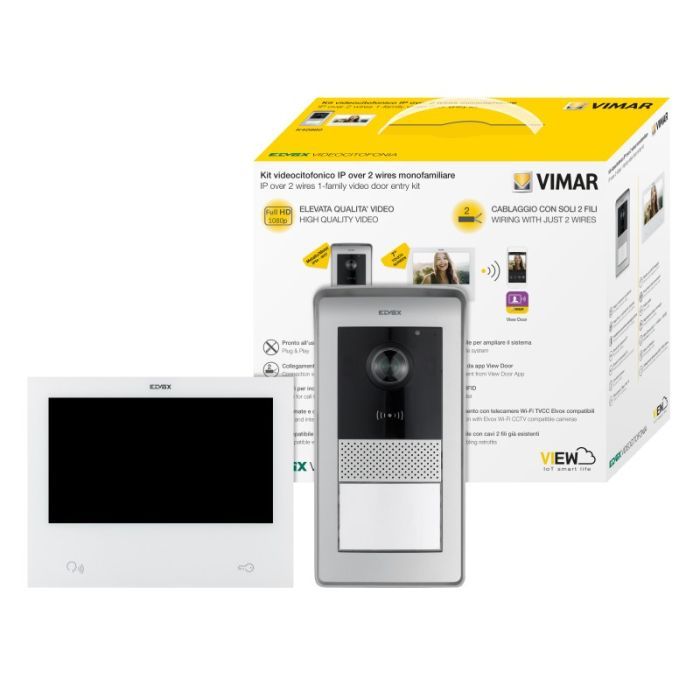

ELVK40980-AU Elvox IP-over-2Wires 7 Inch Wi-Fi Video Door Entry Kit
ELVK40980-AU is a Vimar Elvox IP-over-2-Wire video door entry kit comprising a 7 in Wi-Fi touch screen indoor station, a 40980.P audio/video entrance panel, and a dedicated system power supply.
It is suitable for IP-over-2-Wire video door entry installations using non-polarised 2-wire cabling with TCP/IP communication. Supports multiple entrance panels and indoor stations, video and audio communication, the View Door App, RFID reader compatibility, and star, daisy-chain, or mixed wiring topologies.
Key Features
- Combines IP-over-2Wires communication with familiar 2-wire installation practice
- Supports remote door entry interaction through the View Door App when suitable internet access is available
- Helps installers build expandable entrance systems with flexible wiring topology options
- Pairs a touch screen indoor monitor with a weather-rated aluminium entrance panel
- System capacity, camera and power-supply specifications support project planning
- Catalogue Family:
- INTERCOM
- System Technology:
- IP-over-2Wires using TCP/IP over non-polarised 2-wire cables
- Indoor Station Display:
- 7 inch LCD TFT touch screen
- Indoor Station Resolution:
- 1024 x 600 RGB
- Indoor Station Dimensions:
- 184 mm L x 146 mm H x 24 mm D
- Indoor Station Wi-Fi:
- IEEE 802.11 b/g/n 2.4 GHz
- Outdoor Station Camera:
- 2 Mpx CMOS WDR sensor with Full HD H.264 video
- Outdoor Station Viewing Angle:
- 160 degree horizontal wide-angle lens
- Outdoor Station Protection:
- IP54 and IK07
- Outdoor Station Dimensions:
- 101.3 mm L x 198.8 mm H x 43.8 mm D with rain-proof frame
- System Power Supply:
- 100-230 VAC input; 32 VDC 3.5 A max output
- Product Type:
- Intercom
