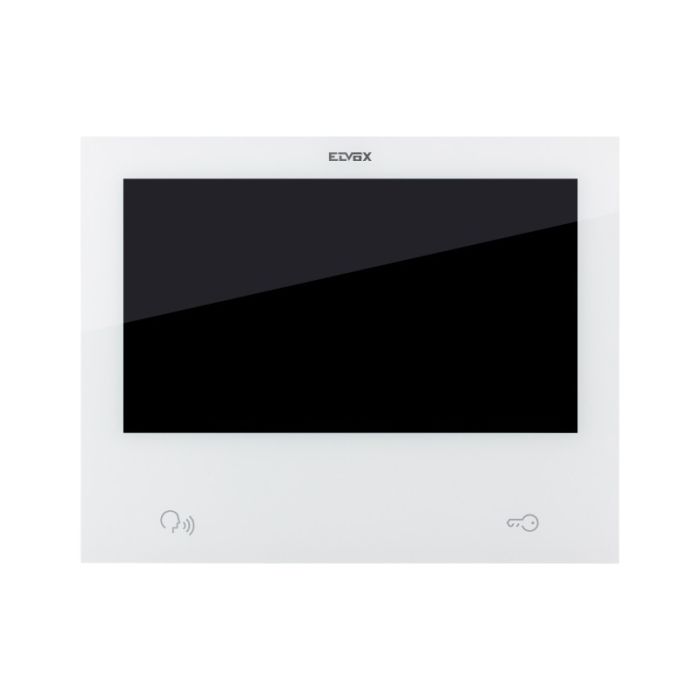

ELV40980-M IP-over-2-Wire 7 in Touch Screen Wi-Fi Monitor
The ELV40980-M is a 7 in capacitive touch screen indoor monitor for IP-over-2-Wire video door entry systems. It supports video door entry calls from outdoor stations, audio intercom calls from other indoor stations or the View Door app, and video/audio previews from outdoor stations and supported IP cameras.
Built for surface-wall mounted indoor station installations, the monitor combines Wi-Fi connectivity, internal flash memory, micro SD support and full-duplex audio with echo cancellation and noise reduction. It suits IPo2W apartment systems where local touch control, call history, image or video saving and app-connected operation are required.
Key Features
- Large touch display gives users a clear control point for calls, previews and entry actions.
- Wi-Fi and View Door app support help extend call handling beyond the wall monitor.
- Recording and memory options support practical review of call and consultation events.
- Full-duplex audio processing helps conversations remain usable in everyday entry scenarios.
- Surface-wall installation keeps the monitor suited to straightforward indoor mounting.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Display:
- 7 in LCD TFT capacitive touch screen
- Lcd Resolution:
- 1024 x 600 RGB
- Power Supply:
- 32 V DC via system bus
- Wi-Fi:
- IEEE 802.11 b/g/n 2.4 GHz
- Frequency Range:
- 2412-2472 MHz
- RF Transmission Power:
- < 100 mW (20 dBm)
- Memory Support:
- Micro SD card slot, SDHC, 8 GB to 128 GB, Class4 to Class10
- Dimensions:
- 184 mm x 146 mm x 24 mm
- Operating Temperature:
- -10 °C to +40 °C
- Operating Humidity:
- 0% to 90%
