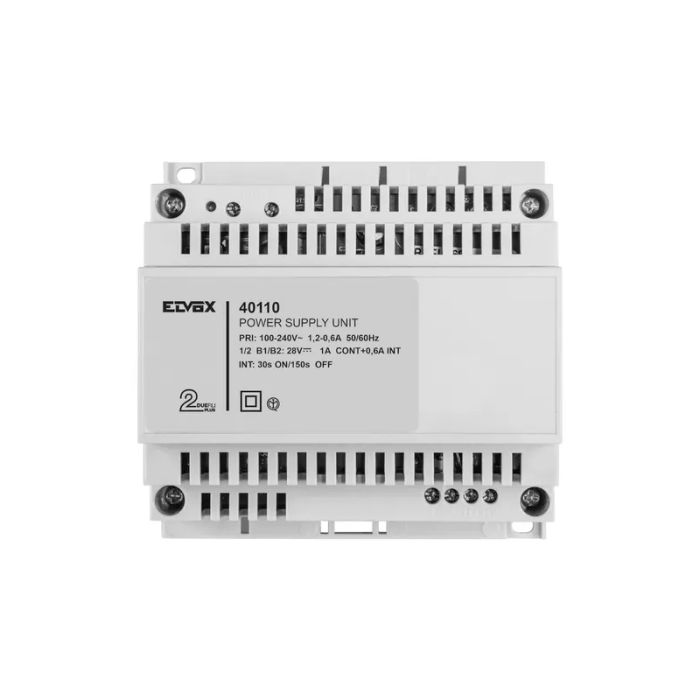

ELV40110-AU Elvox Due Fili Plus Video Door Entry Power Supply
ELV40110-AU is a Vimar Elvox Due Fili Plus power supply with 100-40 VAC input, 28 VDC nominal BUS output, and a maximum output current of 1.6 A.
It is suitable for Due Fili Plus door entry installations. Supports DIN rail mounting with a six-module 17.5 mm form factor, IP30-rated protection, and an operating temperature range of -5 deg C to +35 deg C.
Key Features
- Supports Due Fili Plus video door entry power distribution with a defined 28 Vdc BUS output.
- Wide 100-240 Vac input range helps suit standard project supply planning.
- DIN rail format gives installers a structured enclosure-mounting approach.
- Output-current limits help system designers manage connected device loads.
- Defined electrical limits help support safer specification for Due Fili Plus system equipment.
- Catalogue Family:
- INTERCOM
- Family:
- Due Fili Plus video door entry power supply
- Input Voltage:
- 100-240 Vac, 50/60 Hz
- Maximum Current Draw:
- 1.2 A at 100 V; 0.6 A at 240 V
- Power Dissipation:
- 15 W
- Bus Output Voltage:
- 28 Vdc nominal, SELV - EN60950-1
- Maximum Current Output:
- 1.6 A, 1 A continuous plus 0.6 A intermittent, 30 s ON / 150 s OFF
- Operating Temperature:
- -5 deg C to +35 deg C, indoor use
- Mounting:
- DIN rail 60715 TH35
- Module Size and Dimensions:
- 6 x 17.5 mm modules; 108 x 106 x 63 mm
- Degree of Protection:
- IP30
- Overvoltage Category:
- CAT III
- Colour:
- Beige
- Input Amps:
- 1.2A
- Input Voltage Range:
- 100-240VDC
- IP Rating:
- IP30
- Output Amps:
- 1.6A
- Output Number:
- 2
- Output Voltage Range:
- 28VDC
- Type of Device:
- POWER SUPPLY
- Product Type:
- Intercom
