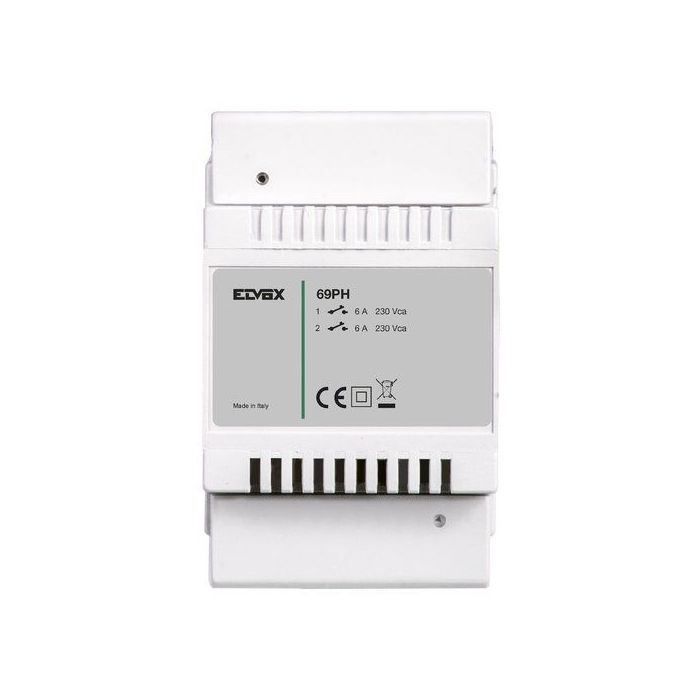

69PH Programmable Device with Two Relays
69PH is a programmable Elvox DueFili relay module with two actuators. The ELV69PH is a relay module for Vimar Elvox Due Fili door-entry systems supporting standard and extended Due Fili configurations.
It is suitable for auxiliary relay and call repeater functions in compatible Due Fili installations. Supports independent or combined operation with manual programming or configuration using compatible programming tools where supported.
Key Features
- Two relay actuators support flexible auxiliary control roles.
- Can be configured independently or in conjunction for system-specific logic.
- Supports relay and call-repeater functions.
- DIN rail or wall installation gives installers cabinet-placement flexibility.
- SaveProg and 950C programming paths support advanced configuration work.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- System Context:
- Elvox DueFili systems
- Maximum Contact Load:
- 230 V 6 A / AC1
- Power Supply:
- Due Fili Bus
- Standby Absorption:
- 1.8 mA
- Operating Absorption:
- 15 mA
- Peak Current:
- 80 mA for 80 ms
- Operating Temperature:
- 0 deg C to +40 deg C
- Installation:
- DIN rail 60715 TH35 or wall
- Dimensions:
- 70 x 115 x 50 mm
