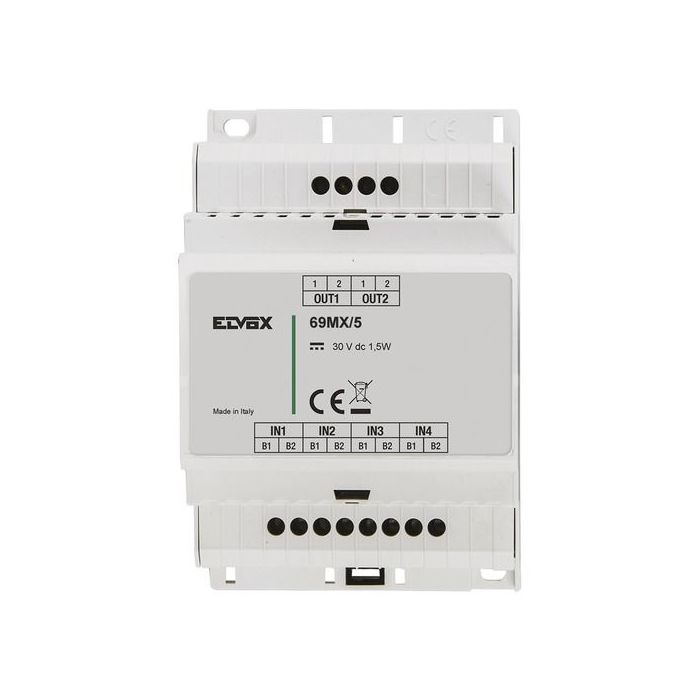

ELV69MX5 Elvox Due Fili Plus Cat 5 Entrance Panel Concentrator
ELV69MX5 is a Vimar Elvox Due Fili Plus concentrator for connecting up to four entrance panels in parallel, including at least one video entrance panel, in Cat. 5 cabling installations.
Suitable for Due Fili Plus door entry installations requiring multiple entrance panel connections. Supports DIN rail mounting with a four-module 17.5 mm DIN rail form factor.
Key Features
- Helps organise multi-entrance-panel layouts by concentrating up to four panels per module.
- Supports Cat. 5 cabled system designs where parallel entrance-panel connection is required.
- DIN rail format keeps the concentrator suited to structured equipment locations.
- Provides a structured route for including at least one video entrance panel in the parallel group.
- Keeps the outdoor-station connection role separate from the indoor-station side of the system.
- Catalogue Family:
- INTERCOM
- Family:
- ELVOX Door entry / Due Fili Plus / System components
- Product:
- Concentrator for 4 entrance panels in parallel on Cat. 5
- Capacity Stated:
- Up to 4 entrance panels in parallel per module
- Cable Context:
- Cat. 5 systems
- Installation:
- DIN rail, 4 modules of 17.5 mm
- Suitable for:
- Outdoor station
- Mounting Method:
- Surface mounted (plaster)
- Colour:
- Grey
- Package Quantity:
- 1 NR
- Pack Dimensions:
- 11.5 x 10 x 8.5 cm
- Pack Weight:
- 180 g
- Marking References Listed:
- Morocco, RoHS UAE, WEEE Directive
- Product Type:
- Intercom
