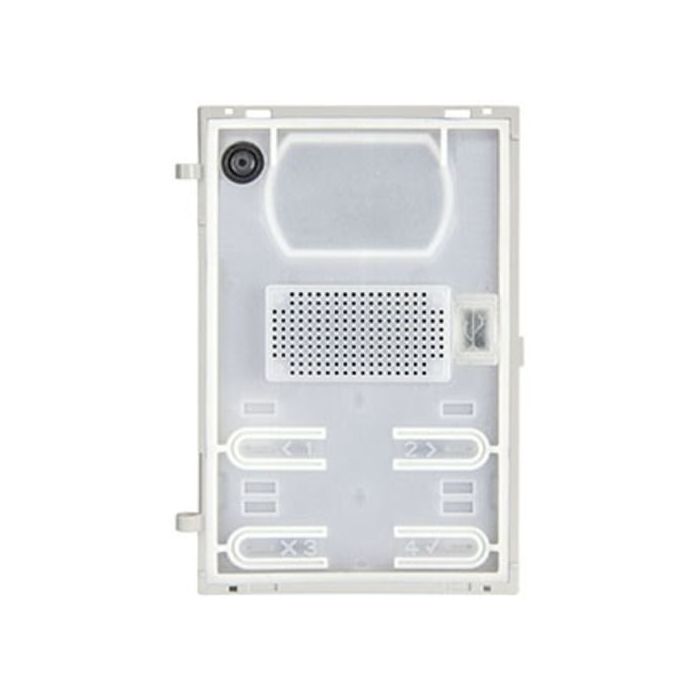

41000 Due Fili Plus Audio Unit - Pixel
The 41000 is an Audio electronic module for Vimar Elvox Pixel Series Due Fili Plus entrance panels with automatic sound balancing, four backlit call buttons with white LEDs, an external door-opener button input, and a direct electric lock output.
Suitable for Due Fili Plus door entry installations. Compatible with Pixel Series audio front modules and single, double, or fixed button configurations.
Key Features
- Provides the audio electronic unit role for Pixel Due Fili Plus entrance panels.
- Four backlit call buttons support compact calling layouts from the base module.
- Automatic sound balancing helps support clearer entrance-panel audio operation.
- Electric-lock output and external door-opener input support common door-entry functions.
- Modular completion with front modules and buttons allows the panel face to be configured to the site.
- Catalogue Family:
- INTERCOM
- Code:
- 41000
- Product Type:
- Intercom
- Family:
- ELVOX Door entry Due Fili Plus Pixel
- Installation Technique:
- Bus system
- Model:
- Speak/ring
- Number of Bell Buttons:
- 4
- Hearing Aid Compatible:
- Yes
- Height:
- 114.50 mm
- Day/Night Function:
- No
- Manual Adjustable Camera:
- No
- Certification References:
- NSW RCM Australia RoHS UAE WEEE Directive
- Colour:
- White
- Device Type:
- 4 BUTTON AUDIO MODULE
- Display Size:
- None
- Mounting:
- Recessed Mount
- Power:
- POWER BY BUS CONTROLLER
- Series:
- PIXEL/ HEAVY DUE FILI+
- Solution:
- APARTMENT,COMMERCIAL
- Technology:
- 2-WIRE
