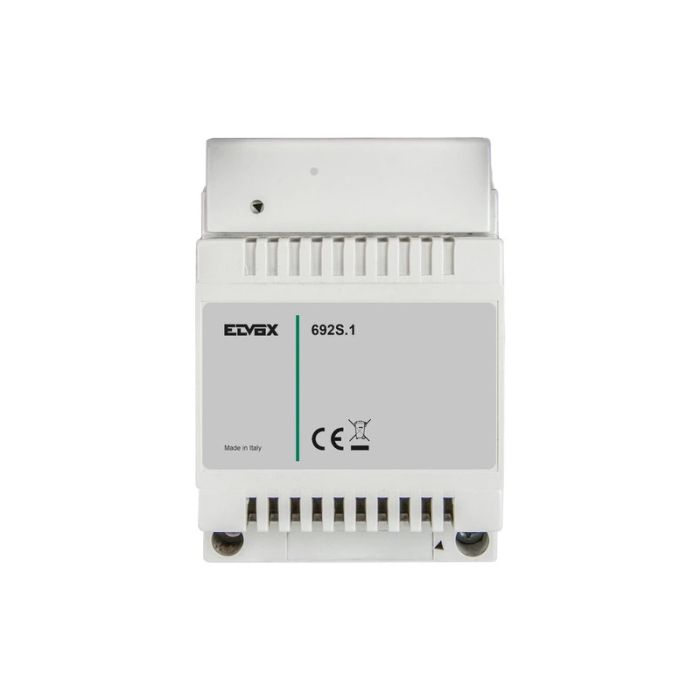

ELV692S-1 Due Fili Plus Separator - DIN Rail 4 Module
The ELV692S-1 is a separator for Due Fili Plus systems, used to divide conversation areas in intercom networks, door-call entrance panels and building complexes. It installs on DIN rail 60715 TH35 and occupies four 17.5 mm modules.
This separator is used to create distinct communication islands in larger or more segmented Due Fili Plus installations, such as buildings with main and secondary entrance panels or systems where intercom conversations must not engage other device lines. Main and secondary bus terminals, ID jumpers and LED indicators support structured installation and service checks.
Key Features
- Helps divide larger Due Fili Plus systems into controlled communication areas.
- DIN rail mounting supports clean placement in structured system enclosures.
- Main and secondary bus labelling helps installers separate system branches clearly.
- ID jumper configuration supports multiple separators in the same installation.
- LED indicators give quick visual feedback on bus power and communication activity.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Installation:
- DIN rail 60715 TH35
- Module Size:
- 4 x 17.5 mm modules
- Primary Bus Terminals:
- 1, 2 (BUS_P)
- Secondary Bus Terminals:
- 1, 2 (BUS_D)
- Id Programming:
- 0, 1, 2, 3 jumpers
- Maximum Separators:
- Up to 16 separators in the same installation
- Indicators:
- LEDs for secondary bus power, main bus power and bus communication activity
