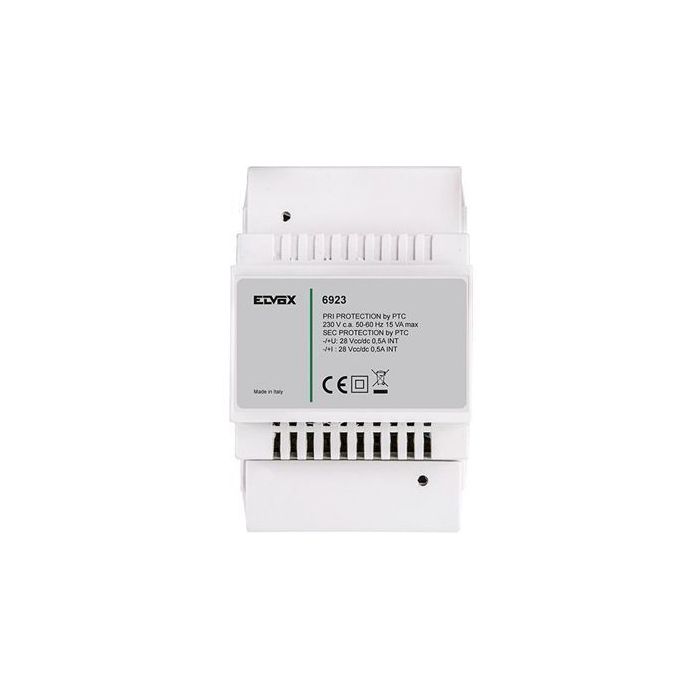

ELV6923-AU Due Fili Additional Power Supply Unit - 28 V DC Output
ELV6923-AU is a Vimar Elvox Due Fili additional power supply with a nominal 28-36 VDC output for powering a compatible entrance panel or video indoor station.
It is suitable for Due Fili video door entry installations requiring a dedicated local power supply. Supports DIN rail mounting with a four-module form factor and features IP30-rated protection for indoor switchboard installation.
Key Features
- Provides a dedicated auxiliary supply path for one supported Due Fili device.
- DIN rail format supports orderly installation inside suitable switchboards.
- Nominal 28-36 V DC output aligns with the Due Fili supply role.
- Clearly stated 10 m device distance limit helps installers plan placement.
- Compact four-module construction supports panel-based power distribution layouts.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Input Power:
- 230 V AC, 50/60 Hz, 20 VA
- Output Voltage:
- Nominal 28-36 V DC at -/+U and -/+I
- Maximum Consumption:
- 107 mA
- Dissipated Power:
- 6 W
- Maximum Current Output:
- 0.15 A continuous + 0.35 A intermittent, 30 s ON / 180 s OFF
- Operating Temperature:
- -5 °C to +35 °C indoor
- Dimensions:
- 119.40 mm x 72 mm x 59 mm
- Din Modules:
- 4 x 17.5 mm modules
- Protection Rating:
- IP30
