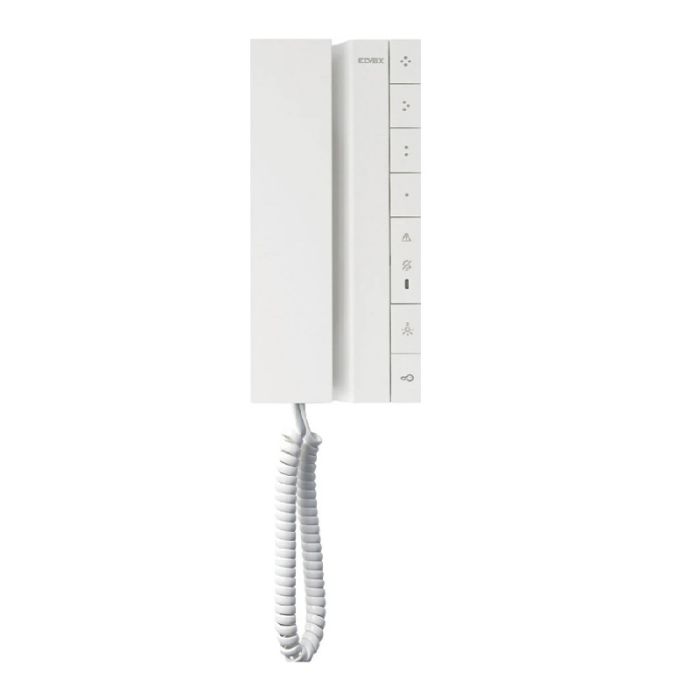

ELV40542 Voxie Due Fili Plus Handset Entryphone - 6 Button
The ELV40542 is a Voxie handset entryphone for Due Fili Plus systems, configured with six push buttons for door lock release, auxiliary service control and programmable auxiliary functions. It is a surface-mounted indoor audio station powered from BUS terminals 1 and 2 at a rated 28 V DC.
Designed for Due Fili Plus vertical bus installations, this handset entryphone supports differentiated call signalling, volume control and programmable functions for intercom, switchboard and auxiliary actions where configured. Its IP30 indoor protection rating and Class A1 ambient classification suit protected internal residential or commercial door entry positions.
Key Features
- Keeps everyday door entry tasks close at hand with lock release, auxiliary service and programmable controls.
- Supports flexible call handling in Due Fili Plus installations without adding a separate local power supply.
- Surface-mounted format helps installers place the station neatly on protected indoor walls.
- Configurable button functions allow the unit to be adapted to common site calling and service needs.
- Clear call and door-status signalling helps users understand entryphone activity at a glance.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- System:
- Due Fili Plus vertical bus
- Mounting:
- Surface Mount
- Power Supply:
- BUS terminals 1 and 2, rated 28 V DC
- Current Draw:
- 10 mA standby; 100 mA maximum
- Protection Rating:
- IP30
- Operating Temperature:
- -5 °C to +40 °C
- Operating Humidity:
- 10% to 80% non-condensing
- Dimensions:
- 95 mm x 200 mm x 28.5 mm
