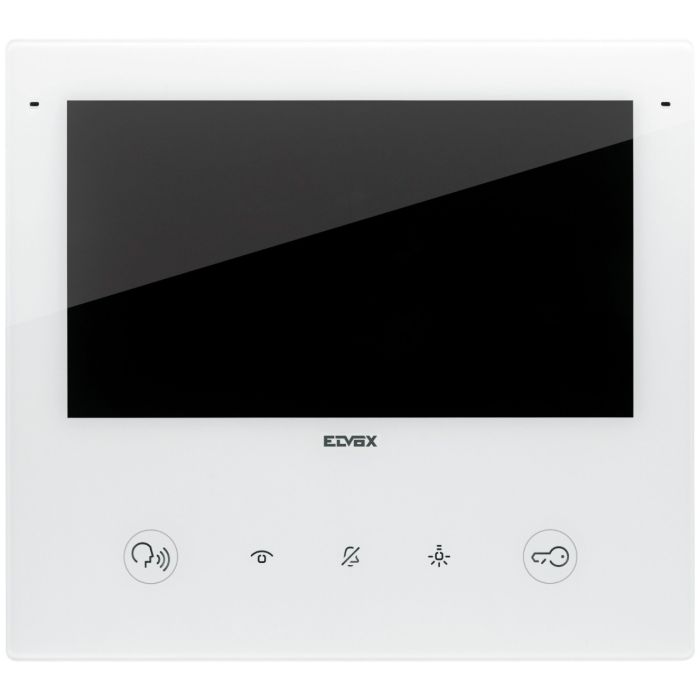

40517 TAB 7S UP 7 in Due Fili Plus Wi-Fi Hands-Free Video Entryphone
40517 is a TAB 7S UP 7 in Due Fili Plus Wi-Fi hands-free video entryphone. The ELV40517 is a wall-mounted hands-free video indoor station with a 7 in capacitive touch screen, 1024 x 600 resolution, 16.8 million colours, capacitive touch keypad and 2.4 GHz 802.11 b/g/n Wi-Fi connectivity.
It is suitable for Due Fili Plus video door entry installations requiring hands-free operation and wireless connectivity. Supports bus power or an additional compatible power supply where required.
Key Features
- 7 in touch display gives users a larger high-resolution video-entry interface.
- Integrated 2.4 GHz Wi-Fi supports the wireless function set.
- Capacitive keypad with backlit symbols keeps common controls accessible.
- BUS or auxiliary supply options support different installation designs.
- Indoor IP30 rating and A1 ambient class define the intended environment clearly.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Display:
- 7 in, 16.8 million colours, 1024 x 600, 16:9 capacitive touch screen
- Wi-Fi:
- 802.11 b/g/n, 2.4 GHz
- Frequency Range:
- 2412-2472 MHz
- Red RF Transmission Power:
- < 100 mW (20 dBm)
- Fcc RF Transmission Power:
- < 1000 mW (30 dBm)
- Standby Absorption:
- 58 mA
- Maximum Current:
- 480 mA
- Protection Degree:
- IP30
- Operating Temperature:
- -5 deg C to +40 deg C indoor
- Power Supply:
- BUS terminals 1, 2 at 28 V DC or additional 6923 supply
- Colour:
- White
- Device Type:
- MONITOR
- Display Size:
- 7 INCH DISPLAY
- Mounting:
- Surface Mount
- Power:
- 28VDC/ POWER BY BUS CONTROLLER
- Series:
- TAB 7S UP DUE FILI+
- Solution:
- APARTMENT,RESIDENTIAL
- Technology:
- 2-WIRE
