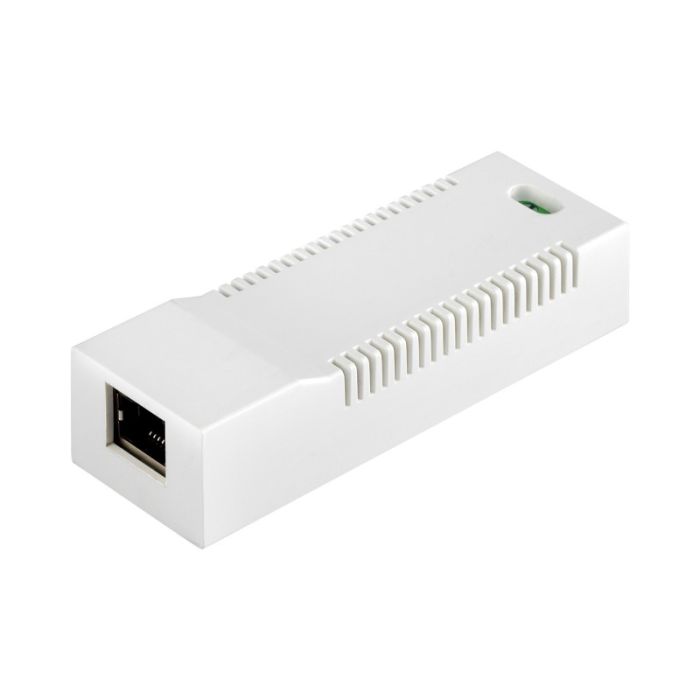

ELV40168 Elvox IP Converter for IP-over-2-Wire CCTV Integration
The ELV40168 is a Vimar Elvox IP-over-2-Wire converter for integrating IP cameras with Vimar Elvox door entry systems.
It is suitable for IP CCTV integration over a 2-wire bus. It supports direct connection of compatible IP cameras, preview on compatible monitors and mobile apps, and up to 20 system cameras using fixed IP addressing.
Key Features
- Supports integration of compatible Elvox IP cameras into IP-over-2-Wire systems.
- Enables IP camera connectivity through the 2-Wire bus.
- Supports camera preview on compatible monitors and mobile applications.
- Supports integration of up to 20 system IP cameras.
- Supports fixed IP addressing for system camera configuration.
- Catalogue Family:
- INTERCOM
- System Context:
- IP-over-2-Wire system
- Function Stated:
- Connects system IP cameras directly to the 2-Wire bus
- Camera Preview Scope:
- System cameras can be previewed by all monitors and connected apps in the system
- System Camera Allowance:
- Up to 20 cameras per system
- System Camera IP Range:
- 10.128.0.1 to 10.128.254.254
- Netmask:
- 255.0.0.0
- Product Type:
- Intercom
