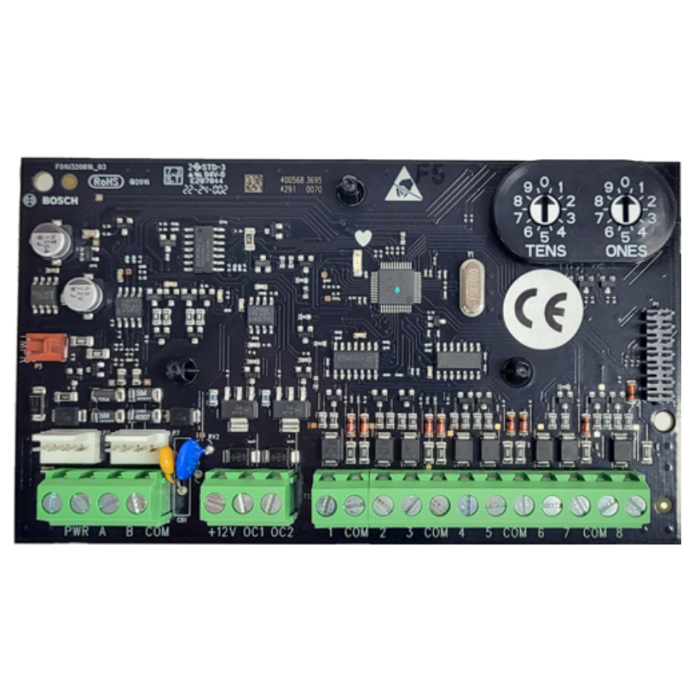

B228 SDI2 8 Input 2 Output Expansion Module
The B228 is an SDI2 expansion module that adds 8 supervised points or zones and 2 switched outputs to compatible Solution 4000 control panels. It communicates point status changes back to the panel and switches outputs through panel commands.
The module is useful where an installation needs extra monitored inputs and local output control without changing the main panel. Screw terminal access, sensor-loop condition monitoring and support for multiple EOL resistance options give installers practical wiring flexibility.
Key Features
- Expands a Solution 4000 installation with additional supervised zone capacity.
- Two switched outputs support local event-driven control from panel programming.
- Sensor loop monitoring reports open, short, normal and ground fault conditions.
- Onboard terminals simplify connection of inputs, outputs and SDI2 wiring.
- Compact module dimensions help it fit inside compatible security enclosures.
- Catalogue Family:
- ALARM / INTRUSION
- Product Type:
- Alarm / Intrusion
- Inputs:
- 8 points/zones supervised expansion
- Outputs:
- 2 additional switched outputs
- Current Consumption:
- 30 mA
- Nominal Voltage:
- 12 VDC
- Output Voltage:
- 12 VDC
- Dimensions:
- 73.5 mm x 127 mm x 15.25 mm
- Operating Temperature:
- 0 deg C to 50 deg C
- Relative Humidity:
- 5% to 93% non-condensing
- Sdi2 Wiring Distance:
- 305 m maximum using unshielded wire
