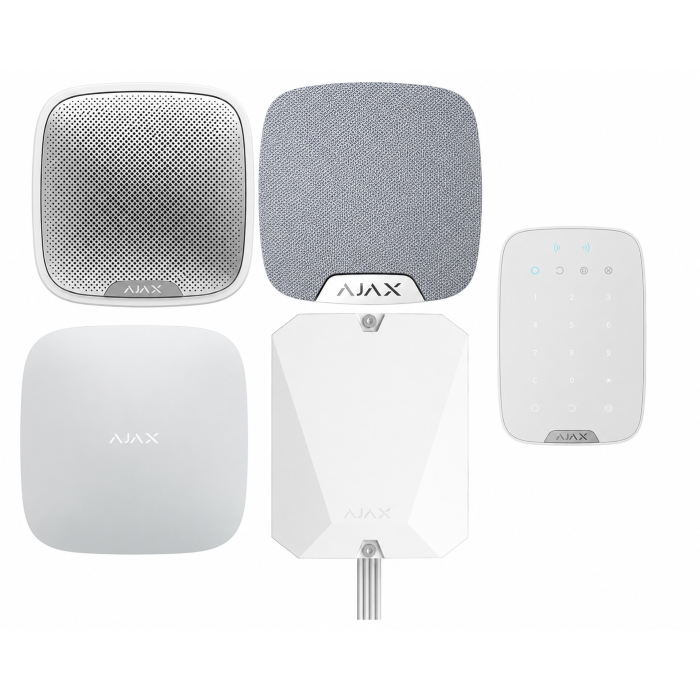

AJAX1001 Ajax Hardwire Kit with Hub 2 2G MultiTransmitter Street Siren Home Siren and KeyPad Plus - White
The AJAX1001 is a white Ajax hybrid security kit comprising Hub 2 (2G), MultiTransmitter, Street Siren, Home Siren and KeyPad Plus. It combines Ajax wireless system management with integration for compatible third-party wired detectors, together with indoor and outdoor audible warning devices and keypad operation using access codes or supported Ajax Pass and Tag credentials.
Designed for upgrading existing wired alarm installations, the kit allows compatible wired detection devices to be integrated into an Ajax-managed security system while adding app-based management, local alarm indication and convenient system arming and disarming. Hub 2 (2G) provides Ethernet and dual 2G SIM communication, MultiTransmitter supports up to 18 wired zones, and the included sirens and keypad complete the installation with local notification and user control.
Key Features
- Combines Hub 2 (2G), MultiTransmitter, Home Siren, Street Siren and Key Pad Plus in a single hybrid security solution.
- MultiTransmitter supports up to 18 compatible wired detector zones for integrating existing alarm devices.
- Hub 2 (2G) provides app-managed security control with Ethernet connectivity and dual 2G SIM communication paths.
- KeyPad Plus supports system arming and disarming using access codes or compatible Ajax Pass and Tag contactless credentials.
- Indoor and outdoor sirens provide local audible alarm indication to help deter intruders and alert nearby occupants.
- Catalogue Family:
- ALARM PANEL
- Kit Colour:
- White
- Confirmed Kit Components:
- Hub 2 (2G), MultiTransmitter, StreetSiren, HomeSiren and KeyPad Plus
- Hub Communication Channels:
- Ethernet and 2 micro-SIM cellular paths
- Hub Wireless Device Capacity:
- Up to 100 Ajax wireless devices
- Hub Groups:
- Up to 9 security groups
- Multitransmitter Wired Inputs:
- 18 zones
- Multitransmitter Detector Cable Length:
- Up to 400 m
- Multitransmitter Connection Types:
- NO, NC, EOL, 2EOL and 3EOL (firmware 2.13.0 and later)
- Keypad Plus Credential Support:
- Pass, Tag and access codes
- Keypad Plus Jeweller Communication Range:
- Up to 1,700 m (line of sight)
- Homesiren Alarm Volume:
- 80 to 100 dB at 1 m
- Streetsiren Alarm Volume:
- Up to 113 dB
- Product Type:
- Alarm Panel
