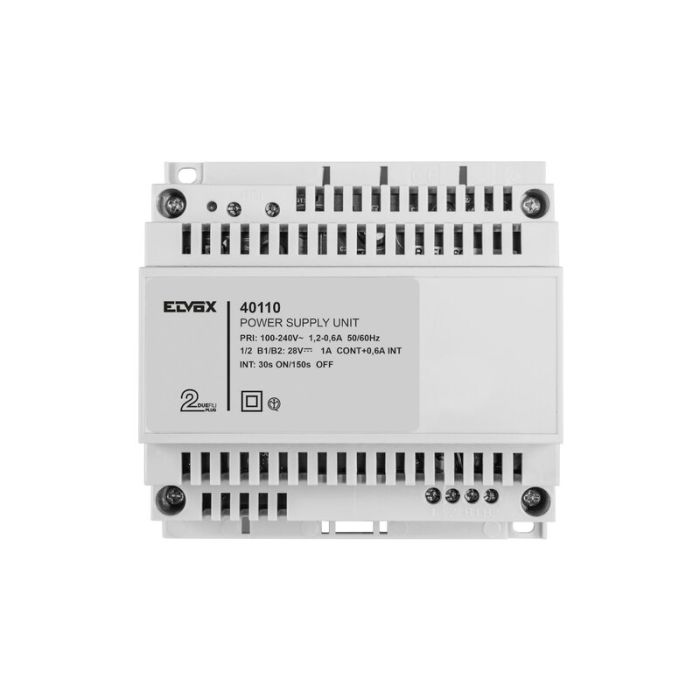

ELV40110 Elvox Due Fili Plus 2F+ Power Supply Unit - 100-240 V 1.6 A
The ELV40110 is an Elvox Due Fili Plus 2F+ power supply unit for video door entry systems with 100-240 Vac input, 28 Vdc nominal BUS output and maximum current output of 1.6 A.
Designed for DIN rail installation, the unit occupies six 17.5 mm modules and is intended for indoor electrical equipment locations. It gives Due Fili Plus projects a defined supply unit with clear output, temperature, protection and enclosure requirements.
Key Features
- Powers Due Fili Plus video door entry equipment from a broad 100-240 Vac supply range.
- DIN rail 6-module format supports tidy placement in electrical enclosures.
- 28 Vdc bus output gives installers a defined SELV supply for the Due Fili Plus system.
- 1.6 A maximum output supports planned load allocation across supported devices.
- IP30 and CAT III installation references give specifiers clear environmental boundaries.
- Catalogue Family:
- INTERCOM
- Family:
- ELVOX Door entry / Due Fili Plus / Power supply unit
- Product:
- Supply unit 2F+ 100-240 V 1 OUT 1.6 A
- Input Voltage:
- 100-240 Vac, 50/60 Hz
- Maximum Current Draw:
- 1.2 A at 100 V; 0.6 A at 240 V
- Power Dissipation:
- 15 W
- Bus Output Voltage:
- 28 Vdc nominal, SELV - EN60950-1
- Maximum Current Output:
- 1.6 A, 1 A continuous plus 0.6 A intermittent, 30 s ON / 150 s OFF
- Operating Temperature:
- -5 deg C to +35 deg C, indoor use
- Mounting:
- DIN rail 60715 TH35
- Module Size and Dimensions:
- 6 x 17.5 mm modules; 108 x 106 x 63 mm
- Degree of Protection:
- IP30
- Overvoltage Category:
- CAT III
- Package Quantity:
- 1 NR
- Pack Dimensions:
- 11.9 x 11.5 x 6.9 cm
- Pack Weight:
- 500 g
- Marking References Listed:
- CE, IMQ, UL, FCC, RoHS UAE, WEEE Directive
- Colour:
- Beige
- Input Amps:
- 1.2A
- Input Voltage Range:
- 100-240VDC
- IP Rating:
- IP30
- Output Amps:
- 1.6A
- Output Number:
- 2
- Output Voltage Range:
- 28VDC
- Type of Device:
- POWER SUPPLY
- Product Type:
- Intercom
