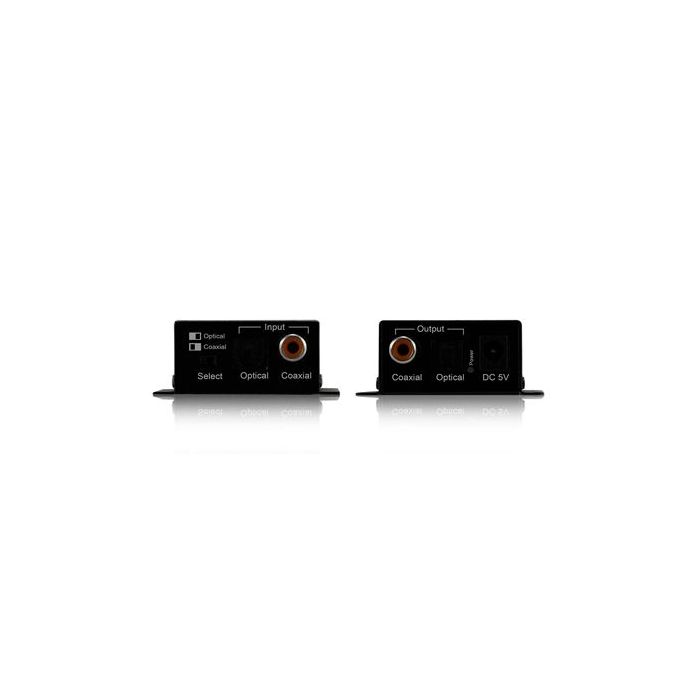

DIG11AU Digital Audio Converter Coaxial and Optical
The DIG11AU is a compact digital audio converter that accepts either optical or coaxial digital audio input and provides concurrent optical and coaxial digital outputs. It is designed for simple digital format conversion between audio devices.
For home or professional AV systems, the unit helps bridge equipment that uses different SPDIF connection types without forcing a larger audio processor into the system. Its small footprint, 5 V power supply and plug-and-play operation suit tidy rack, display or source-side placement.
Key Features
- Converts between common optical and coaxial digital audio paths without complex setup.
- Concurrent outputs give installers more flexibility when feeding downstream equipment.
- Compact housing suits crowded AV cabinets, displays and small equipment shelves.
- Sample-rate support up to 192 kHz helps preserve high-resolution digital audio workflows.
- Simple power and selector layout keeps installation and servicing straightforward.
- Catalogue Family:
- POWER SUPPLY
- Model:
- DIG11AU
- Product Type:
- Power Supply
- Audio Inputs:
- 1 x SPDIF optical and 1 x coaxial digital
- Audio Outputs:
- 1 x SPDIF optical and 1 x coaxial digital
- Resolution Support:
- Up to 192 kHz, 24-bit
- Casing Dimensions:
- 57 x 47 x 22 mm
- Dimensions Including Connections:
- 57 x 62 x 22 mm
- Shipping Weight:
- 0.3 kg
- Power Supply:
- 5 V/1 A DC
- Operating Temperature:
- 0°C to 40°C
