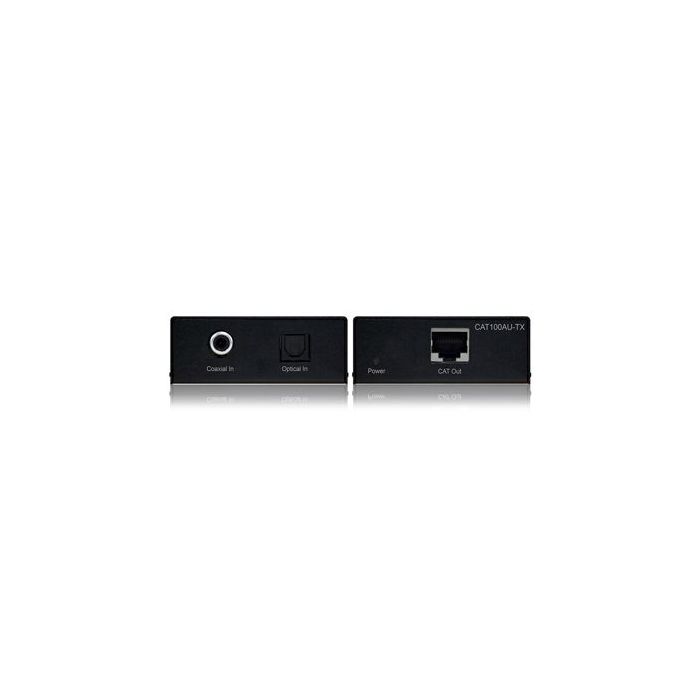

CAT100AU Digital Audio over CAT Extender with DAC - 100m
The CAT100AU is a digital audio extender set that sends optical and coaxial digital audio concurrently over a single Cat5/6 cable. The receiver includes digital-to-analogue conversion, allowing a selected digital input to be converted to analogue L/R audio output.
It is suited to home and professional audio applications where digital audio needs to be moved cleanly between rooms, racks or displays. Support for common sample rates up to 192 kHz and plug-and-play operation makes it useful for straightforward audio extension without complex configuration.
Key Features
- Extends digital audio over existing category cabling for cleaner long-run installations.
- Concurrent optical and coaxial handling gives flexibility around source and output equipment.
- Built-in DAC provides an analogue output path where legacy audio inputs are required.
- Plug-and-play operation keeps setup practical for residential and commercial audio jobs.
- Distance support varies by sample rate, helping installers plan cable runs appropriately.
- Catalogue Family:
- POWER SUPPLY
- Model:
- CAT100AU
- Product Type:
- Power Supply
- Transmitter Inputs:
- 1 x SPDIF optical and 1 x coaxial digital
- Receiver Outputs:
- 1 x SPDIF optical, 1 x coaxial digital and 1 x analogue L/R 3.5 mm
- Cat Distance:
- 192 kHz up to 100 m; 96 kHz up to 150 m; 48 kHz up to 300 m
- Sample Rates:
- 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit
- Casing Dimensions:
- 69 x 64 x 24 mm
- Dimensions Including Connections:
- 76 x 64 x 28 mm
- Power Supply:
- 5 V/1 A DC
- Operating Temperature:
- 0°C to 40°C
