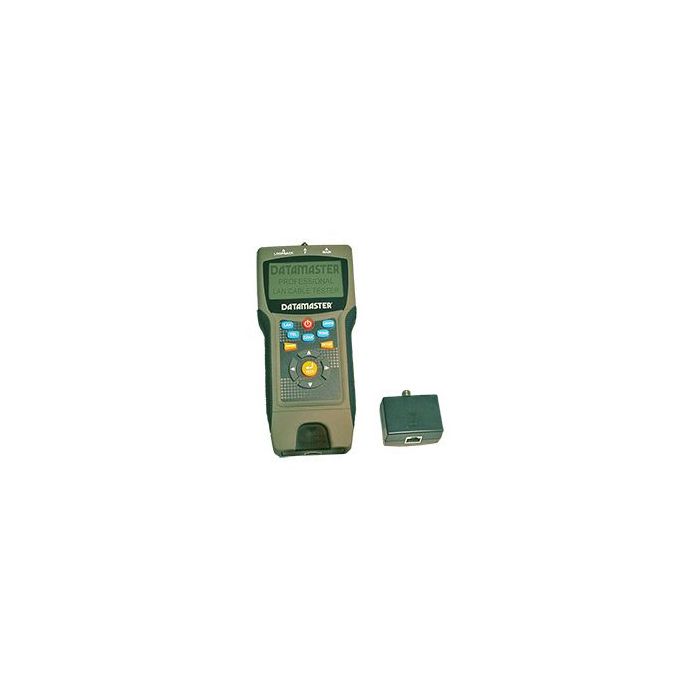

T0046 Datamaster Professional LAN Cable Tester
T0046 is a Datamaster Professional LAN and coaxial cable tester for shielded and unshielded CAT-6, CAT-5E, CAT-5, CAT-4, CAT-3 and coaxial cables, with 2 x 8P8C modular connections and 1 x F connector.
The tester suits installers who need wire-map verification, cable length measurement and fault detection in one handheld tool. It detects open circuits, short circuits, wire reversals and split pairs, and measures cable length by TDR across a confirmed 1 m to 350 m testable length range.
Key Features
- Checks LAN and coaxial cable wiring from one tester
- Detects common wiring faults including opens shorts reversals and split pairs
- TDR length measurement helps locate and document cable runs
- 4 x 16 character LCD supports clear field readout
- Memory locations and auto-off support practical installer use
- Catalogue Family:
- CABLE
- Product Type:
- Cable
- Display:
- 4 x 16 character LCD
- Connections:
- 2 x 8P8C modular plus 1 x F connector
- Cable Suitability:
- Shielded or unshielded CAT-6, CAT-5E, CAT-5, CAT-4, CAT-3 and coaxial
- Errors Detected:
- Open circuit, short circuit, wire reversals and split pairs
- Measurement Types:
- Cable length via TDR and wire map verification
- Testable Cable Length:
- 1 m to 350 m
- Length Accuracy:
- +/- 5%
- Power Source:
- 9V alkaline battery
- Dimensions:
- 195(L) x 90(W) x 40(H) mm
