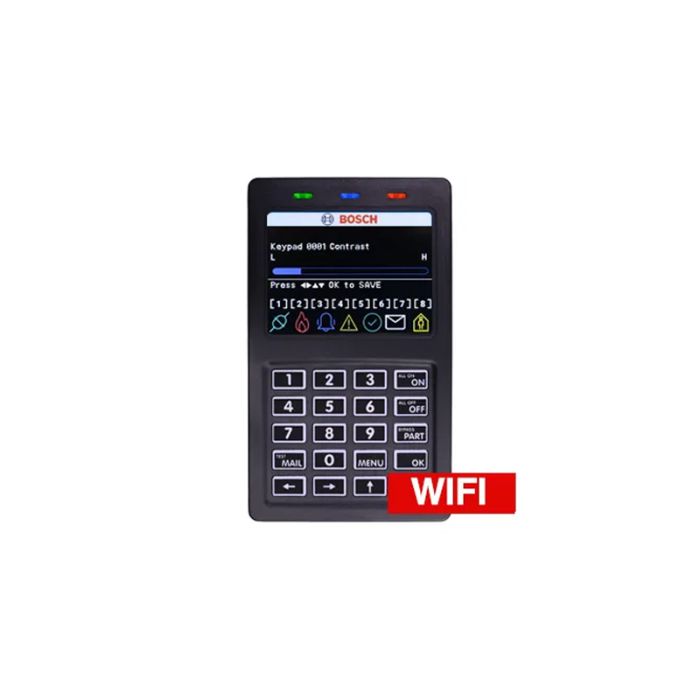

CP737BBK 3.5 Inch Colour Keypad with Wi-Fi and Smart Card Reader - Black
The CP737BBK is the black Bosch RS485 colour graphic keypad variant with built-in Wi-Fi and a 40 bit MiFare smart card reader. It uses the CP737B colour keypad platform for Solution 6000 panel environments, with the black finish supporting darker interior or equipment-area designs.
This keypad is suited to installations that need a black wall interface with clear graphical feedback, smart card operation and wireless network support. It keeps everyday arming, disarming and access-related keypad tasks readable while allowing the installer to customise lighting, sound and on-screen banner details.
Key Features
- Black finish supports installations where the keypad needs to match darker surrounds.
- Built-in Wi-Fi supports compatible MyAlarm and iFob Control service connections.
- Smart card reader helps reduce reliance on memorised PIN-only operation.
- Full-text graphical prompting assists both users and installers during system interaction.
- RS485 LAN design keeps the keypad aligned with supported Bosch Solution 6000 systems.
- Catalogue Family:
- READERS
- Connectivity:
- Proprietary RS485 LAN for Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP panels
- Wi-Fi Standard:
- IEEE 802.11n, IEEE 802.11g and IEEE 802.11b
- Power:
- +12 VDC, 110 mA max; LAN powered +9 VDC to +16 VDC
- Operating Temperature:
- 0 deg C to 55 deg C
- Relative Humidity:
- 5% to 85% non-condensing
- Colour:
- Black
- Dimensions:
- 149 mm x 88 mm x 21.5 mm
- Display:
- Colour graphic display
- Product Type:
- Readers
