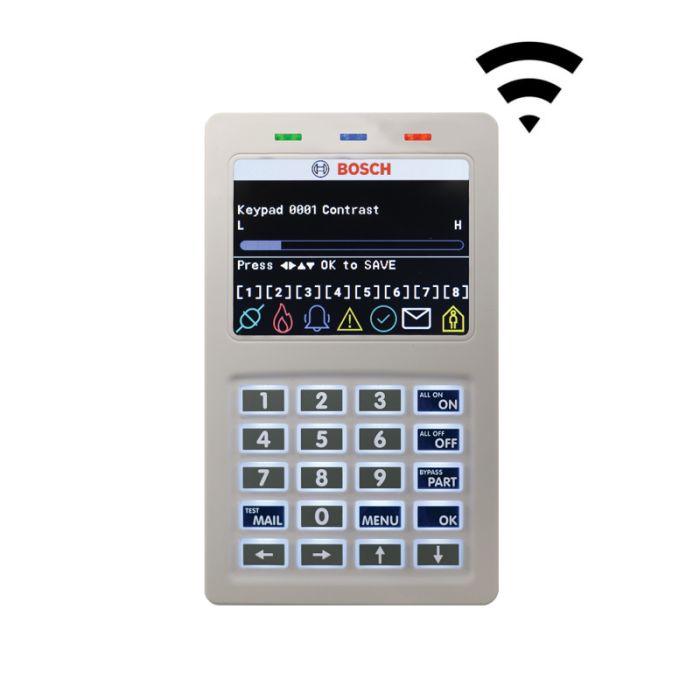

CP737B 3.5 Inch Colour Keypad with Wi-Fi and Smart Card Reader - White
The CP737B is a Bosch Solution 6000 graphic keypad with a 3.5 inch colour display, built-in 40 bit MiFare smart card reader and integrated 802.11 b/g/n Wi-Fi. It connects to supported Bosch panels over the proprietary RS485 LAN and adds wireless network connectivity for compatible interactive services.
Designed for security control and access-related keypad operation, the CP737B combines readable full-text prompting with illuminated keys, programmable feedback and a custom installer banner. Its built-in Wi-Fi support helps the system connect to customer internet services for MyAlarm and iFob Control use where configured.
Key Features
- Integrated Wi-Fi adds network connection flexibility for compatible connected services.
- Colour graphical display presents system conditions and prompts in an easy-to-read format.
- Built-in MiFare reader supports smart card or token operation at the keypad.
- Programmable lighting and sounder behaviour helps suit different user environments.
- Custom banner capability supports a more site-specific keypad presentation.
- Catalogue Family:
- READERS
- Connectivity:
- Proprietary RS485 LAN for Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP panels
- Wi-Fi Standard:
- IEEE 802.11n, IEEE 802.11g and IEEE 802.11b
- Power:
- +12 VDC, 110 mA max; LAN powered +9 VDC to +16 VDC
- Operating Temperature:
- 0 deg C to 55 deg C
- Relative Humidity:
- 5% to 85% non-condensing
- Colour:
- White
- Dimensions:
- 149 mm x 88 mm x 21.5 mm
- Included Components:
- Codepad, manual and mounting back plate
- Product Type:
- Readers
