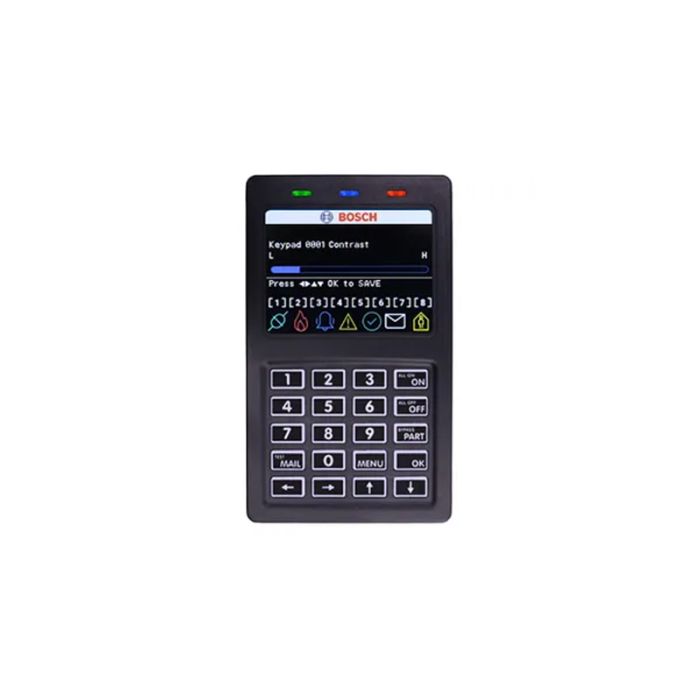

CP736BBK 3.5 Inch Colour Keypad with Smart Card Reader Black
The CP736BBK is the black CP736B 3.5-inch colour graphic keypad with built-in smart card reader. It uses a proprietary RS485 LAN connection and supports Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP panels.
The colour graphical display, alphanumeric text prompting and illuminated keys make it suitable for user-facing alarm and access-control points. A built-in smart card reader, lock and egress terminals, sounder feedback and customisable installer banner support polished system operation and handover.
Key Features
- Colour graphical display gives users clear status and programming feedback.
- Built-in smart card reader supports token or card-based system operation.
- Illuminated keys and programmable brightness improve everyday usability.
- Custom banner field lets installers personalise the keypad screen for the site.
- RS485 LAN support keeps the keypad aligned with Bosch panel architecture.
- Catalogue Family:
- READERS
- Product Type:
- READERS
- Supported Panels:
- Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP
- Connection:
- Proprietary RS485 LAN
- Power:
- +12 VDC, 110 MA MAX; LAN POWERED +9 VDC TO +16 VDC
- Operating Temperature:
- 0 DEG C TO +55 DEG C
- Relative Humidity:
- 5% TO 85% NON-CONDENSING
- Dimensions:
- 149 mm x 88 mm x 21.5 mm
- Display:
- COLOUR
- Colour:
- BLACK
