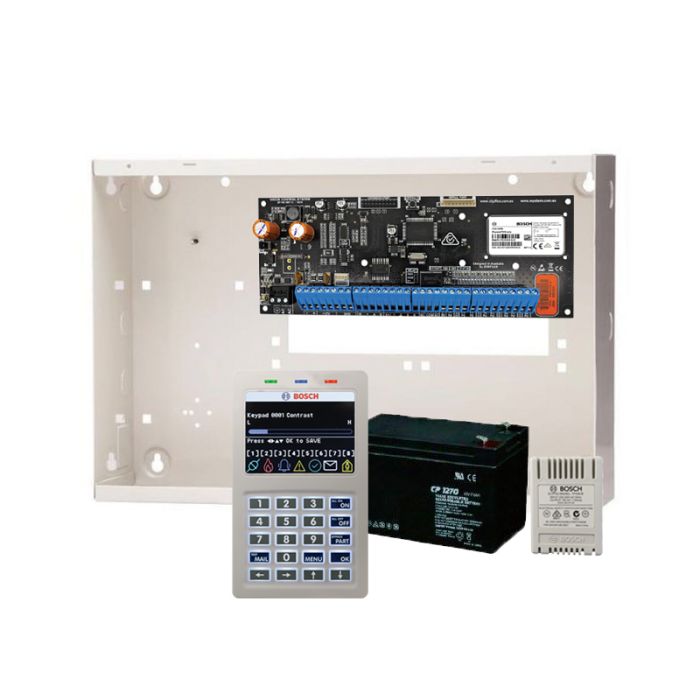

S6K-COLOUR-PROX-KIT Bosch Solution 6000 Proximity Colour Keypad Kit
The S6K-COLOUR-PROX-KIT is a Bosch Solution 6000 kit with a colour proximity keypad, built around the CC610PB Solution 6000 control panel platform. The panel provides 16 onboard zones expandable to 144 wired or wireless zones, integrated access control and proximity credential support.
This kit is suited to larger intrusion and access installations that need panel-level partitioning, programmable outputs and user credential flexibility. The Solution 6000 platform supports up to 8 areas, access control for up to 16 doors and 256 PIN, token, keyfob and fingerprint users.
Key Features
- Solution 6000 platform supports integrated intrusion and access control requirements.
- Expandable zone capacity suits larger wired or wireless security layouts.
- Proximity credential support helps simplify user operation at compatible readers or keypads.
- Up to 8 areas gives installers flexibility for multi-space sites.
- Programmable outputs and communication options support broader system integration.
- Catalogue Family:
- ALARM SENSOR
- Panel Platform:
- CC610PB Solution 6000 control panel
- Onboard Zones:
- 16
- Expandable Zones:
- 144 wired or wireless
- Areas:
- Up to 8
- Users:
- 256 PIN, token, keyfob and fingerprint users
- Access Control:
- Up to 16 doors
- Outputs:
- 5 onboard, expandable to 37
- Power Input:
- 16 VAC to 18 VAC, 50-60 Hz, 24 VA
- Continuous Power:
- 1 A max combined
- Standby Battery:
- 12 VDC 7.2 Ah sealed rechargeable battery
- Operating Temperature:
- 0 deg C to 55 deg C
- Relative Humidity:
- 5% to 85% non-condensing
- Pwa Dimensions:
- 235 mm W x 85 mm H x 40 mm D
- Product Type:
- Alarm Sensor
