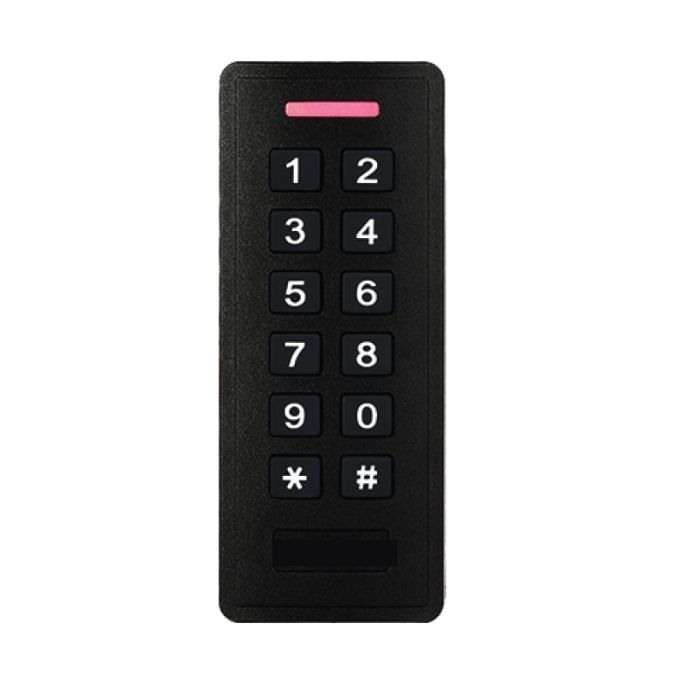

SMART-EMHK2 Standalone Controller with Built-In Card Reader and Keypad
The SMART-EMHK2 is a polycarbonate standalone controller with a built-in card reader and keypad. It supports EM-Marin, Mifare and HID credentials, operates at 125 kHz and 13.56 MHz, and features a Wiegand 26-37 card reader interface.
The controller supports standalone controller or reader operation with a capacity of up to 600 users. It features an IP66-rated polycarbonate housing, 12 VDC power input, and electric lock and alarm outputs rated at less than 2 A.
Key Features
- Standalone controller with integrated card reader and keypad.
- Supports EM-Marin, Mifare and HID credentials.
- Wiegand 26-37 card reader interface.
- IP66-rated polycarbonate housing.
- Supports up to 600 users.
- Catalogue Family:
- CARDS
- Product Type:
- Card / Fob
- Model Material Variant:
- SMART-EMHK2 polycarbonate
- Supported Readers:
- 2
- Card Reader Interface:
- Wiegand 26-37
- Built-In Reader Standard:
- EM-Marin, Mifare, HID
- Frequency:
- 125 kHz and 13.56 MHz
- Maximum Users:
- 600
- Operation Mode:
- Standalone controller / reader
- Electric Lock Output:
- <2 A
- Alarm Output:
- <2 A
- Power:
- 12 VDC / 100 mA
- Casing Material:
- Polycarbonate
- IP Rating:
- IP66
- Operating Temperature:
- -40 deg C to 60 deg C
- Warranty:
- 3 years
