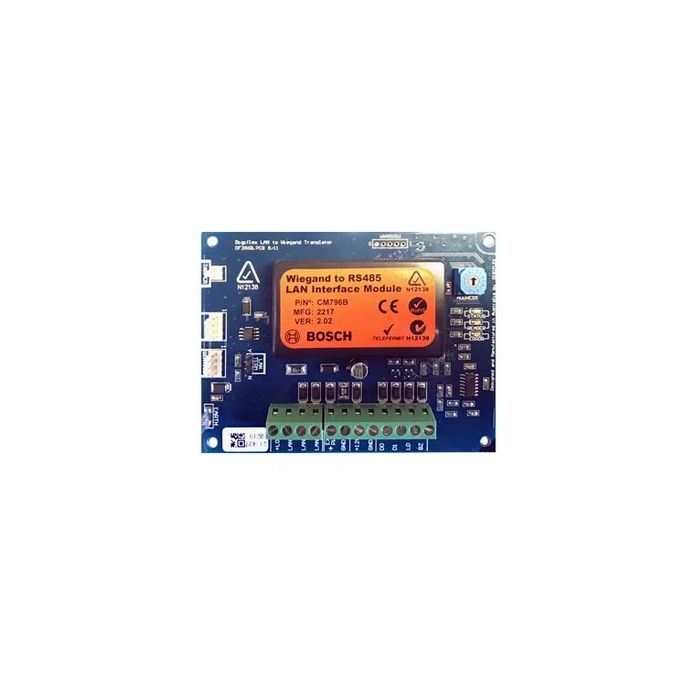

CM796B Wiegand to RS485 LAN Interface Module
The CM796B is a Bosch Wiegand to RS485 LAN interface module for connecting PR100B and suitable third-party Wiegand proximity readers to Solution 144 and Solution 6000 control panels. Support for Wiegand formats from 26-bit to 40-bit, including LED and buzzer control.
It suits sites that already have Wiegand hardware or credentials and need to bring those readers into a Bosch LAN-based panel installation. Programmed as a keypad or reader device and consumes one keypad or reader address on the supported panel.
Key Features
- Allows compatible Wiegand readers to be integrated with Bosch LAN panels
- Supports common 26-bit to 40-bit Wiegand formats
- LED and buzzer control support more complete reader behaviour
- RS485 encrypted LAN connection aligns with Solution panel architecture
- Address-switch setup supports practical commissioning of multiple modules
- Catalogue Family:
- CABLE
- Product Type:
- Cable
- Wiegand Format:
- 26-bit to 40-bit
- Operating Voltage:
- 10.0 V DC to 14.5 V DC at 50 mA maximum
- Supported Panels:
- Solution 144 v2.08; Solution 6000 v2.12
- Module Capacity:
- Up to 15 modules on supported panels
- LAN Length:
- 300 m multi-strand security cable; 1200 m Belden 8723
- Operating Environment:
- 0 deg C to 55 deg C; 5% to 85% RH at 30 deg C non-condensing
