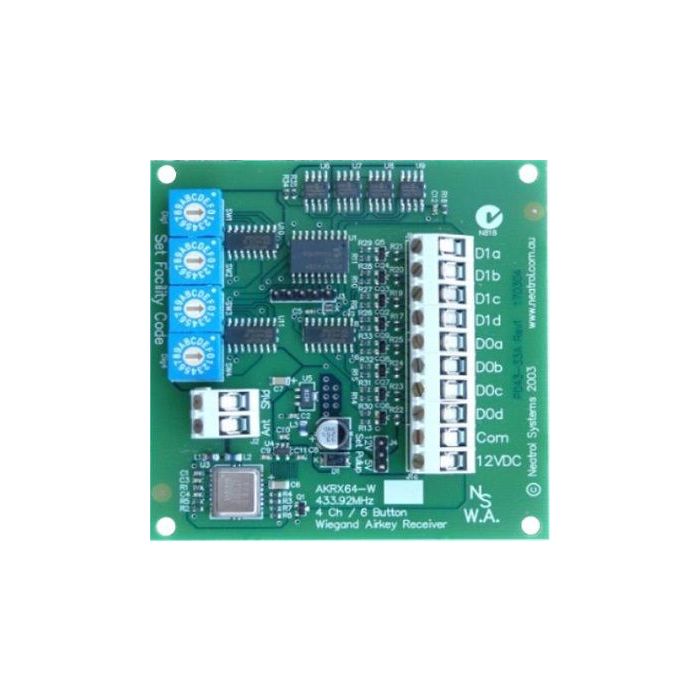

AKRX64-W26MF Airkey 6 Channel Multi Facility Code Wiegand Receiver
The AKRX64-W26MF is an Airkey Wiegand receiver designed for access control applications. It provides standard Wiegand data outputs and supports multiple facility codes for installations where more than one facility code is in use.
Designed for Airkey Wiegand transmitters, the receiver features a sealed enclosure, rotary facility-code selection and non-volatile storage, making it suitable for multi-site access control deployments.
Key Features
- Four Wiegand data output pairs support integration with access control systems.
- Multi-facility-code capability supports sites using multiple facility codes.
- IP65 sealed weatherproof enclosure with stainless steel quarter-wave antenna.
- Rotary facility-code switches allow selection of accepted transmitter facility codes.
- 128 Kbyte non-volatile storage supports synchronisation of up to 65,536 serial numbers.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Model:
- AKRX64-W26MF
- Product Type:
- Transmitters & Receivers
- Input:
- 6 button input, selectable button groups
- Outputs:
- 4 x Wiegand data output pairs
- Facility Code Selection:
- 4 x rotary switches
- Enclosure:
- IP65 sealed weatherproof enclosure with stainless steel quarter-wave antenna
- Dimensions:
- 115 x 90 x 55 mm, case only
- Weight:
- 560 g including antenna
- Receiver:
- 433.92 MHz ASK receiver, -114 dBm sensitivity
- Supply:
- Nominal 12 VDC, approximately 40 mA
- Storage:
- 128 Kbyte non-volatile storage, synchronises 65,536 serial numbers
