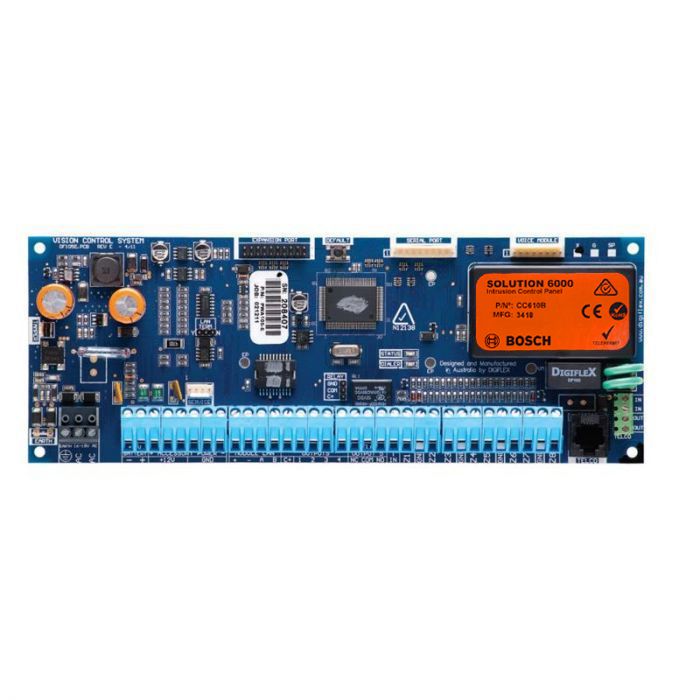

CC610PB Solution 6000 Control Panel PCB
The CC610PB Solution 6000 control panel is an access and intrusion alarm panel with 16 onboard zones that can expand to 144 wired or wireless zones. It supports integrated access control, multiple keypad and reader options, and programmable outputs for larger security installations.
Designed and manufactured in Australia, the panel suits residential, commercial and multi-area sites that need alarm control, access control and flexible communications from one platform. RS485 LAN module support, event logging and multiple reporting formats give installers room to tailor the system to the site.
Key Features
- Combines intrusion alarm and access control capability in one Bosch panel platform.
- Expandable zone and output capacity supports growth beyond a basic installation.
- Multi-area operation helps separate parts of a premises under one system.
- Flexible credential support lets sites mix PIN, token, keyfob and fingerprint use where configured.
- RS485 LAN architecture supports remote modules and readers across larger layouts.
- Catalogue Family:
- CARDS
- Product Type:
- Card / Fob
- Onboard Zones:
- 16 onboard zones
- Maximum Zones:
- Expandable to 144 wired or wireless zones
- Areas:
- Up to 8 areas
- Access Doors:
- Up to 16 doors
- Users:
- Up to 256 PIN, token, keyfob and fingerprint users
- Onboard Outputs:
- 5 onboard outputs
- Maximum Outputs:
- Expandable to 37 outputs
- Event Log:
- Up to 1000 events
- Power Input:
- 16 VAC to 18 VAC, 50 Hz to 60 Hz, 24 VA external power adaptor or internal transformer
