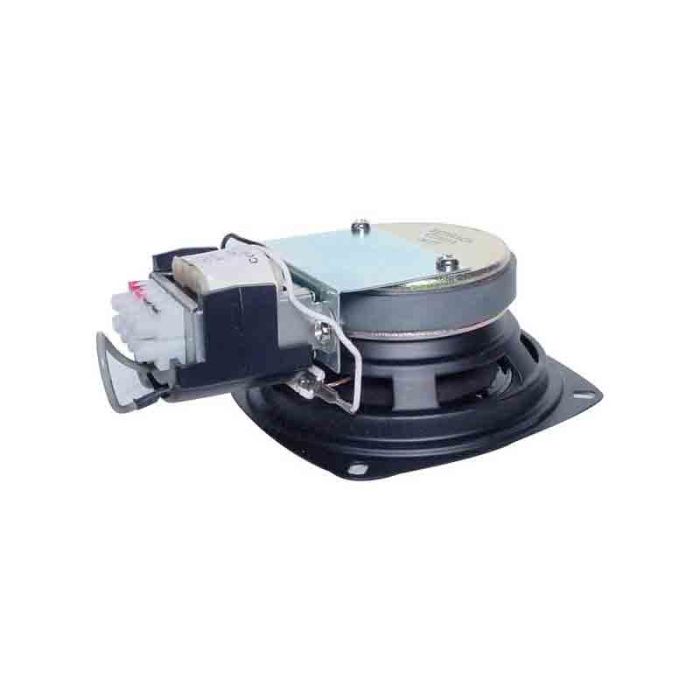

C2103A Low Profile 100mm 100V 5W Twin Cone Driver
The C2103A is a low profile 100mm 100V 5W twin cone public address driver for paging and EWIS installations. It includes a transformer safety cover, 4-way wire protect terminal block and 22uF bipolar capacitor for line monitoring.
It is designed for general paging and emergency warning installations where limited recess space is available. The 54mm mounting depth and 102mm ceiling cutout make it useful for compact ceiling speaker assemblies using compatible grilles and fixing accessories.
Key Features
- Supports paging and EWIS speaker installations in shallow ceiling spaces.
- Provides selectable transformer taps for matching system output requirements.
- Includes line-monitoring support through the fitted bipolar capacitor.
- Helps loop-in and loop-out wiring through a 4-way terminal block.
- Pairs with compatible Redback grilles for complete ceiling speaker assemblies.
- Catalogue Family:
- SPEAKERS
- Model:
- C2103A
- Power Taps:
- 0.33W, 0.66W, 1.25W, 2.5W, 5W
- SPL 1 W @ 1m:
- 91dB at 1kHz (+/- 2dB)
- Frequency Response:
- 100Hz-15kHz
- Connection:
- 4-way terminal block + 22uF bipolar capacitor
- Driver Construction:
- Paper twin cone
- Ceiling Cutout:
- 102mm
- Mounting Depth:
- 54mm
- Overall Weight:
- 660g
- Operating Temperature:
- -25 to +55 deg C
- Product Type:
- Speakers
