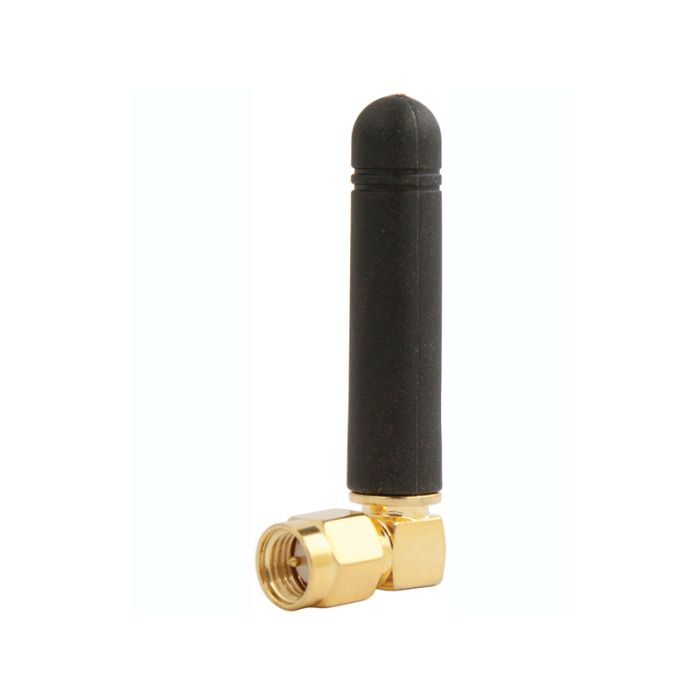

ANT433MICRO Elsema 433Micro 433 MHz Antenna - SMA
The ANT433MICRO aligns to Elsema's 433Micro antenna and a compact 433 MHz antenna with 433-435 MHz operation, SMA connector, and moulded rubber construction.
Suitable for space-constrained 433 MHz devices and enclosures requiring direct SMA connection. Features a compact 45 mm design without a coaxial cable.
Key Features
- 45 mm length suits compact devices and tight mounting spaces.
- SMA termination supports direct connection to compatible 433 MHz equipment.
- Moulded rubber construction gives a simple practical antenna body.
- Omnidirectional pattern supports general-purpose short antenna placement.
- No coaxial cable keeps the installation neat where a direct antenna is required.
- Catalogue Family:
- CABLE
- Model:
- 433Micro
- Frequency:
- 433 to 435 MHz
- Tuned Bandwidth:
- 2 MHz
- Gain:
- 0 dBi
- Vswr:
- < 1.5:1 over 2 MHz
- Impedance:
- 50 ohms
- Length:
- 45 mm
- Weight:
- 8 g
- Termination:
- SMA
- Product Type:
- Cable
