ANT433M Elsema 433 MHz High Gain Antenna - 1 m

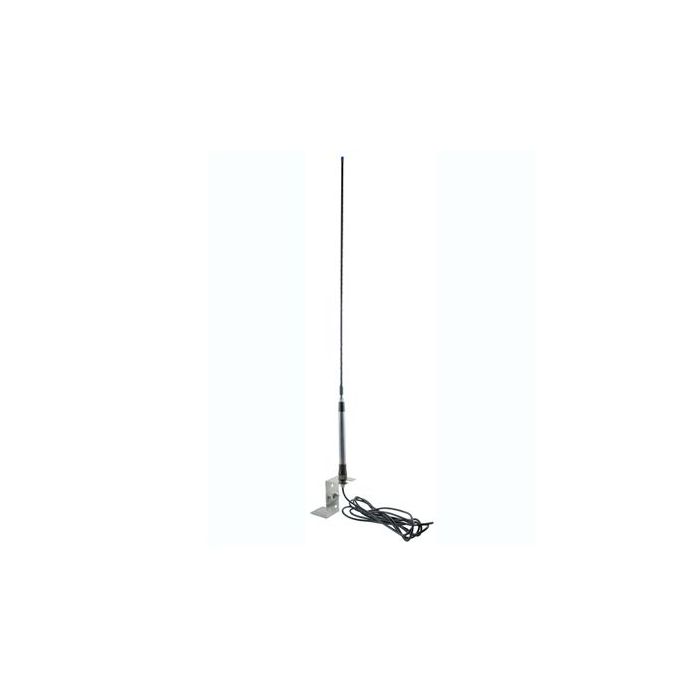

The ANT433M is a high-gain 433 MHz ground-independent colinear antenna with coaxial cable, mounting bracket and SMA connector. The ANT433M is a stainless steel high-gain antenna tuned for 433 MHz radio systems with 6.0 dBi gain.
Suitable for extending signal coverage in compatible 433 MHz remote control and receiver installations. Features a low VSWR, omnidirectional radiation pattern, and supplied low-loss coaxial cable.
Key Features
- 6.0 dBi gain supports extended 433 MHz radio performance where the installation allows it.
- Ground-independent design helps the antenna work across a wider range of mounting conditions.
- Stainless steel construction supports durable external antenna use.
- Included coaxial cable and bracket simplify wall or structure mounting.
- SMA termination matches the Elsema antenna configuration.
- Catalogue Family:
- CABLE
- Model:
- ANT433M
- Frequency:
- 428 to 437 MHz
- Tuned Bandwidth:
- 9 MHz
- Gain:
- 6.0 dBi
- Vswr:
- < 1.5:1 over 9 MHz
- Impedance:
- 50 ohms
- Length:
- 1 m
- Coaxial Length:
- 3.6 m standard
- Termination:
- SMA
- Product Type:
- Cable
