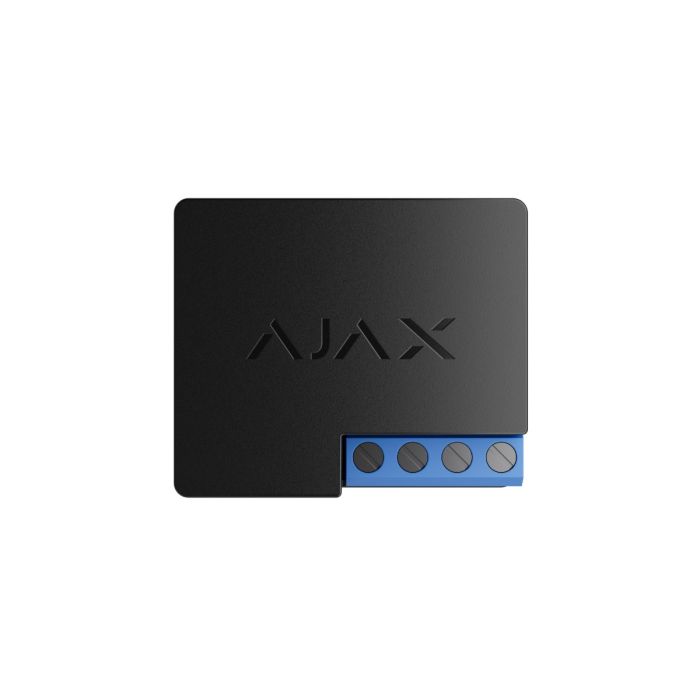

AJAWALLS Ajax WallSwitch Jeweller 3 kW Power Relay - 110-230 V AC
The AJAWALLS is an Ajax WallSwitch Jeweller power relay for remotely controlling 110-230 V AC power supply and connected appliances. Direct mains connection, load handling up to 3 kW at 230 V AC resistive load and in-app visibility of current, voltage, power consumption and energy use.
It is used in automation scenarios for switching lights, sockets, gates, valves and other suitable connected circuits through Ajax apps, Button, schedules or alarm reactions. Pulse and bistable modes, adjustable pulse timing, QR pairing and Jeweller encrypted communication support flexible installation and ongoing control.
Key Features
- Enables remote switching of connected mains-powered loads through Ajax apps and scenarios.
- Energy measurement gives visibility of electrical parameters in the app.
- Pulse and bistable modes help match momentary or latching control needs.
- Jeweller radio communication supports encrypted two-way control over long range.
- Compact enclosure suits appropriate wall plate, appliance or panel installations.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Power Supply:
- 110-230 V AC, 50/60 Hz
- Maximum Load Current:
- 10 A
- Output Power:
- Up to 3 kW at 230 V AC resistive load
- Standby Power Consumption:
- Up to 1 W
- Operating Modes:
- Pulse or bistable
- Adjustable Pulse Duration:
- 1 to 255 s
- Communication:
- Jeweller radio protocol
- Communication Range:
- Up to 1,000 m in line of sight
- Dimensions:
- 39 x 33 x 18 mm
- Weight:
- 30 g
- Protection Class:
- IP20
- Operating Temperature:
- 0 & deg C to +64 degC
- Operating Humidity:
- Up to 75% with no condensation
- Colour:
- Black
