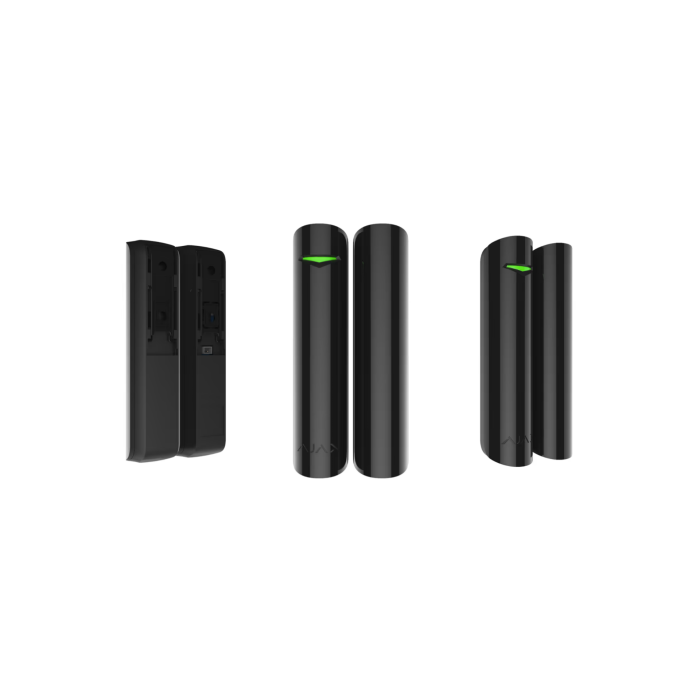

AJADRPPB Door Protect Plus Jeweller Opening Shock and Tilt Detector - Black
AJADRPPB Door Protect Plus Jeweller is a black wireless detector for opening, shock and tilt detection in Ajax Jeweller systems. It features a reed switch for opening detection, a built-in accelerometer for shock, vibration and tilt detection, and an additional normally closed (NC) input for connecting a compatible wired detector.
The detector communicates using Jeweller wireless technology and supports tamper detection, device authentication, adjustable shock and tilt sensitivity, and configuration through Ajax apps.
Key Features
- Combines opening, shock and tilt detection in a single device.
- Supports adjustable shock and tilt sensitivity.
- Includes an additional normally closed (NC) input for a compatible wired detector.
- Uses Jeweller wireless communication with device authentication and tamper detection.
- Battery-powered for wireless installation on doors, windows and other entry points.
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Colour:
- Black
- Sensitive Elements:
- 1 x reed switch and 1 x accelerometer
- Shock Sensor Sensitivity:
- 3 levels adjustable in Ajax apps
- Tilt Activation Threshold:
- 5 degree to 25 degree
- Third-Party Detector Connection:
- Wired detector with normally closed contact type
- Communication Technology:
- Jeweller
- Communication Range:
- Up to 1,200 m in open space
- Compliance References:
- EN 50131 Grade 2, PD 6662:2017, UL 634, ULC/ORD-C634
- Battery:
- 1 x CR123A pre-installed
- Battery Life:
- Up to 5 years
- Operating Temperature:
- -10 deg C to +40 deg C
- Protection Class:
- IP50
- Detector Enclosure Dimensions:
- 20 x; 90 mm
