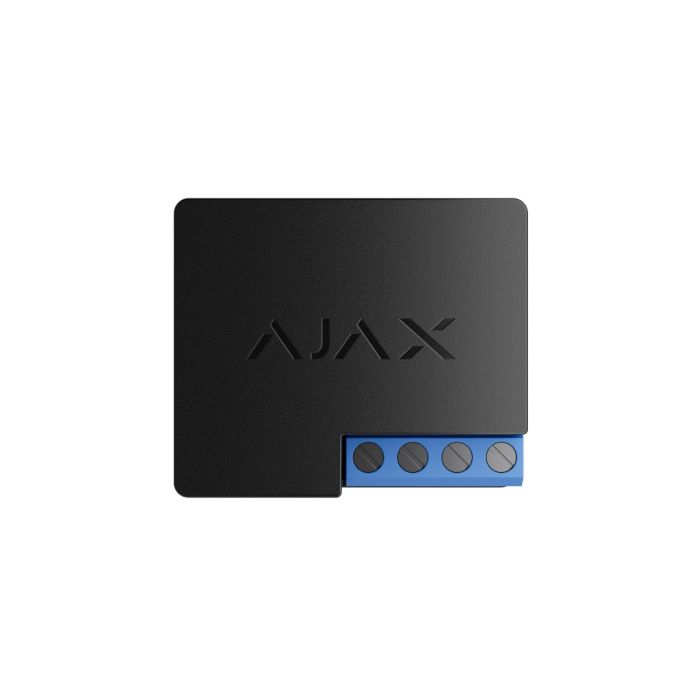

AJARELAY Relay Jeweller Wireless Dry Contact Relay - Black
AJARELAY Relay Jeweller is a black wireless dry-contact relay for remotely controlling connected circuits and appliances through an Ajax system. It uses potential-free contacts, supports bistable and pulse operating modes, and can be controlled through Ajax apps, Button, automation scenarios or the device function button.
The relay is suitable for switching gates, electric locks, shut-off valves, blinds and other circuits within its specified load limits. Its compact 39 x 33 x 18 mm enclosure fits into confined control spaces, while optional DIN-rail mounting is available with a separately sold DIN Holder.
Key Features
- Adds remote dry-contact switching to Ajax automation and alarm-response scenarios.
- Supports bistable and timed pulse operation to suit different connected circuits.
- Provides normally open or normally closed contact configuration.
- Compact enclosure suits confined control spaces and optional DIN-rail mounting.
- Includes voltage and temperature protection.
- Catalogue Family:
- POWER SUPPLY
- Device Type:
- Relay Jeweller dry contact relay
- Colour:
- Black
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 1,000 m in line of sight
- Operating Modes:
- Bistable and pulse
- Pulse Duration:
- 1 to 255 seconds
- Power Supply:
- 7-24 V DC, recommended 12 V DC or 24 V DC
- Standby Energy Consumption:
- Up to 1 W
- Maximum Load Current:
- 5 A at 24 V DC; 13 A at 230 V AC
- Output Power:
- Up to 2.5 kW at 230 V AC
- Protection Class:
- IP20
- Operating Temperature:
- -20 deg C to +64 deg C
- Operating Humidity:
- Up to 85% with no condensation
- Dimensions:
- 39 x 33 x 18 mm
- Weight:
- 25 g
- Product Type:
- Power Supply
