AJAKEYPTSW KeyPad TouchScreen Jeweller Wireless Keypad - White

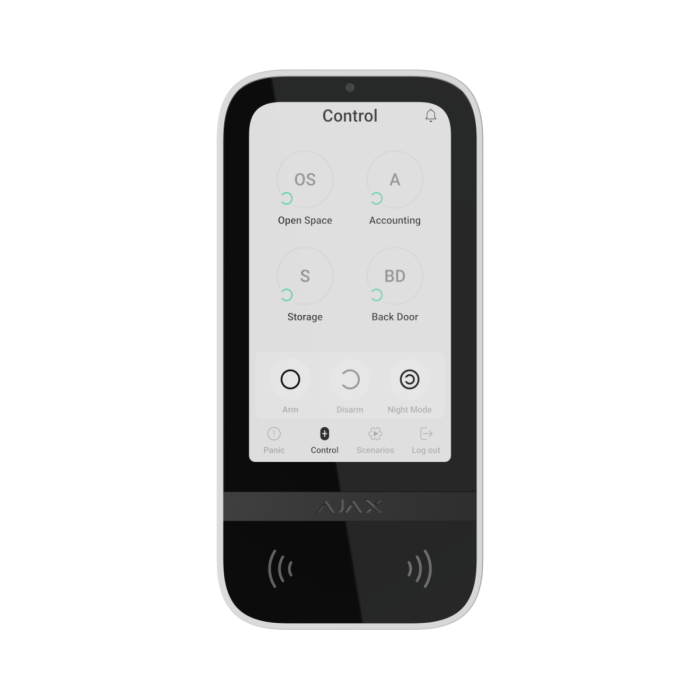

AJAKEYPTSW KeyPad TouchScreen Jeweller is a white wireless keypad for Ajax security and automation control, built around a 5 inch IPS capacitive touch screen. It supports Pass cards, Tag key fobs, smartphones and codes, with Jeweller and Wings communication for Ajax system interaction.
It fits installations where a wall keypad needs to present more than numeric entry, giving users visual group control, automation toggles, event history and emergency buttons. External power can be connected for over-the-air updates, with the pre-installed batteries then operating as backup power.
Key Features
- Adds a touch-screen control point for Ajax sites that need clearer visual interaction
- Lets users authenticate by card, key fob, smartphone or code according to site access needs
- Shows recent events and arming issues directly on the keypad to reduce guesswork at the door
- Supports automation management through on-screen controls for compatible bistable-mode devices
- Keeps installation tidy through SmartBracket mounting and app-based configuration
- Catalogue Family:
- CARDS
- Device Type:
- KeyPad TouchScreen Jeweller wireless keypad
- Colour:
- White
- Communication Technology:
- Jeweller and Wings communication technologies
- Communication Range:
- Up to 1,700 m in open space
- Display:
- 5 inch IPS capacitive touch screen
- Resolution:
- 480 x 854 px
- Contactless Access:
- Up to 200 cards and key fobs
- Authentication Methods:
- Pass card, Tag key fob, smartphone and codes
- Emergency Buttons:
- Panic, fire and auxiliary alert
- Battery:
- 6 x AA battery, pre-installed
- Battery Life:
- Up to 1.5 years
- Optional External Power:
- 10.5-14 V DC, up to 0.5 A
- Operating Temperature:
- -10 deg C to +40 deg C
- Dimensions:
- 171.5 x 82.1 x 26 mm
- Weight:
- 327 g
- Product Type:
- Card / Fob
