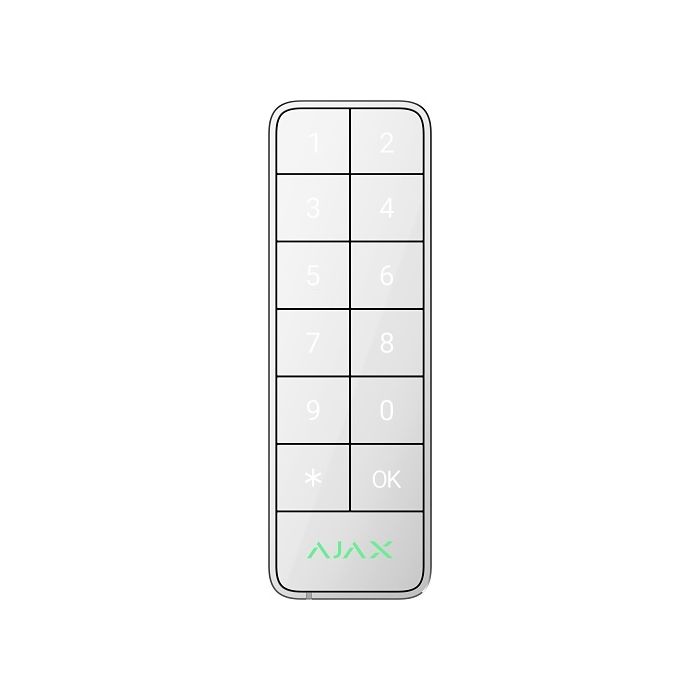

AJAFKEYPODWH Superior KeyPad Outdoor Fibra Wired Outdoor Keypad - White
AJAFKEYPODWH is the white Superior KeyPad Outdoor Fibra, a wired Ajax keypad for outdoor and indoor use. It combines contactless authorisation with Pass or Tag, smartphone authentication over BLE and keypad code entry for flexible security control.
This model is suited to entrances, gates and exposed access points that need a hardwired keypad with clear tactile operation. The IP66 and IK08 enclosure ratings, sabotage resistance and Fibra communication help support dependable control in professional Superior installations.
Key Features
- Provides a hardwired keypad option for exposed entry points and indoor control locations.
- Lets sites combine cards, tags, smartphones and codes in one access workflow.
- Improves usability in practical conditions with large mechanical buttons.
- Supports secure system operation with tamper alarm, spoofing protection and code lockout.
- Helps installers configure and test the device locally or remotely through Ajax apps.
- Catalogue Family:
- POWER SUPPLY
- Colour:
- White
- Product Line:
- Superior
- Authentication:
- Pass cards, Tag key fobs, smartphones via BLE and access codes
- Fibra Range:
- Up to 2,000 m with U/UTP cat.5 4 x 2 x 0.51 mm cable
- Power Supply:
- 7-30 V DC, up to 0.6 W
- Operating Temperature:
- -25 degC to +60 degC
- Operating Humidity:
- Up to 80%
- Protection Class:
- IP66
- Impact Protection:
- IK08
- Dimensions:
- 137 x 45 x 27 mm
- Weight:
- 160 g
- Compliance References:
- In progress: EN 50131 Grade 3, PD 6662:2017 up to 50 devices, SSF
- Product Type:
- Power Supply
